| Category | Nipples |
| Description Class | Female thread |
| Connection | NPT 1/4″ |

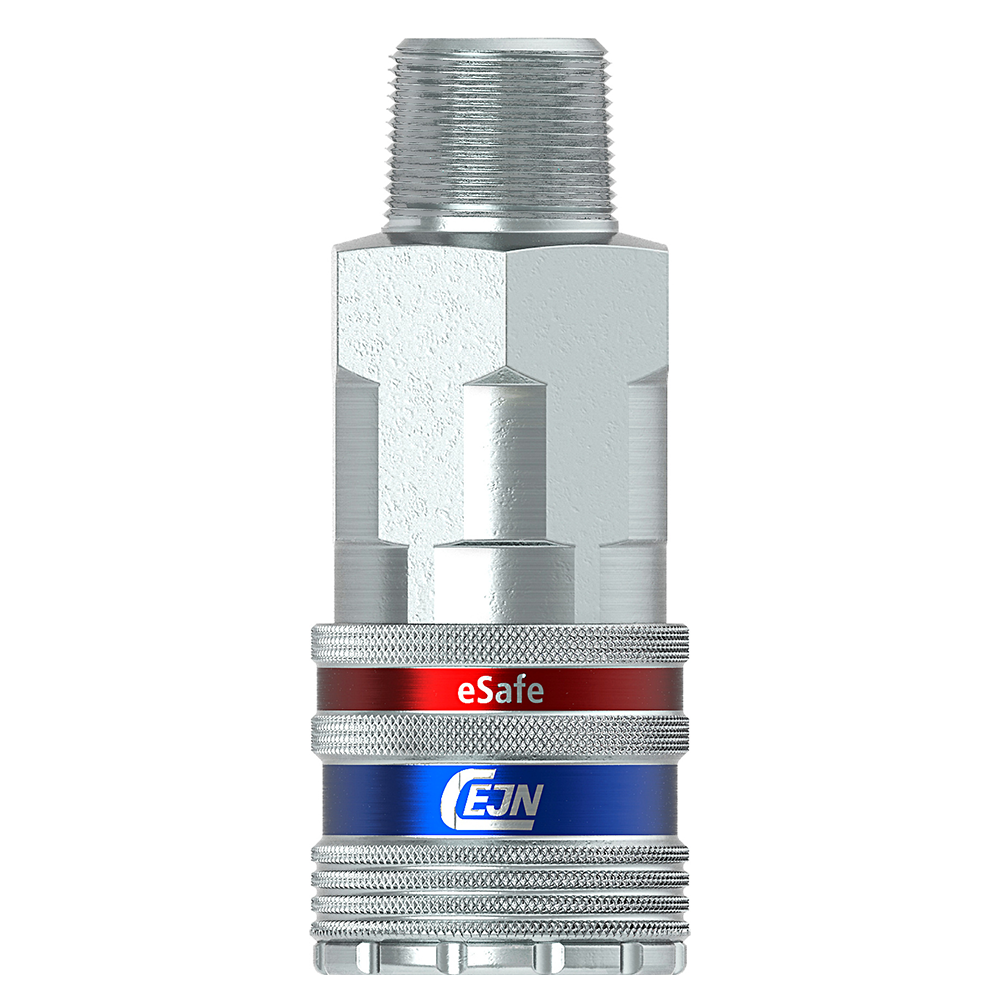

eSafe Series 320 coupling is an easy-to-handle high performing coupling with a long service life. eSafe is a one hand operated safety coupling that vents before disconnection eliminating the risk of hose whip. Male threads on the couplings and nipples feature pre-applied thread sealant. The couplings have a smaller outside dimension than comparable designs. Full automatic operation ensures easy handling. eSafe complies with ISO Standard 4414.Series 320 is also available in Soft-Line, Multi-Link versions and in stainless steel version, series 326.
| Nominal flow diameter | 7.6 mm (0.3″) |
| Air flow | 2250 l/min (79.4 CFM) |
| Max. working pressure | 16 bar (232 PSI) |
| Min. burst pressure | 140 bar (2030 PSI) |
| Connection force | 86 N |
| Temperature range | -20°C — +100°C (-4°F — +212°F) |
| Material coupling | Zinc-plated steel/brass |
| Material nipple | Hardened zinc-plated steel |
| Standards | CEJN Original, Eurostandard 7.4 mm |
| Markets | Global |
