Destaco 215-U | Horizontal Hold-Down Toggle Locking Clamp
Product Details
In Stock: 2805
Couldn't load pickup availability
Description

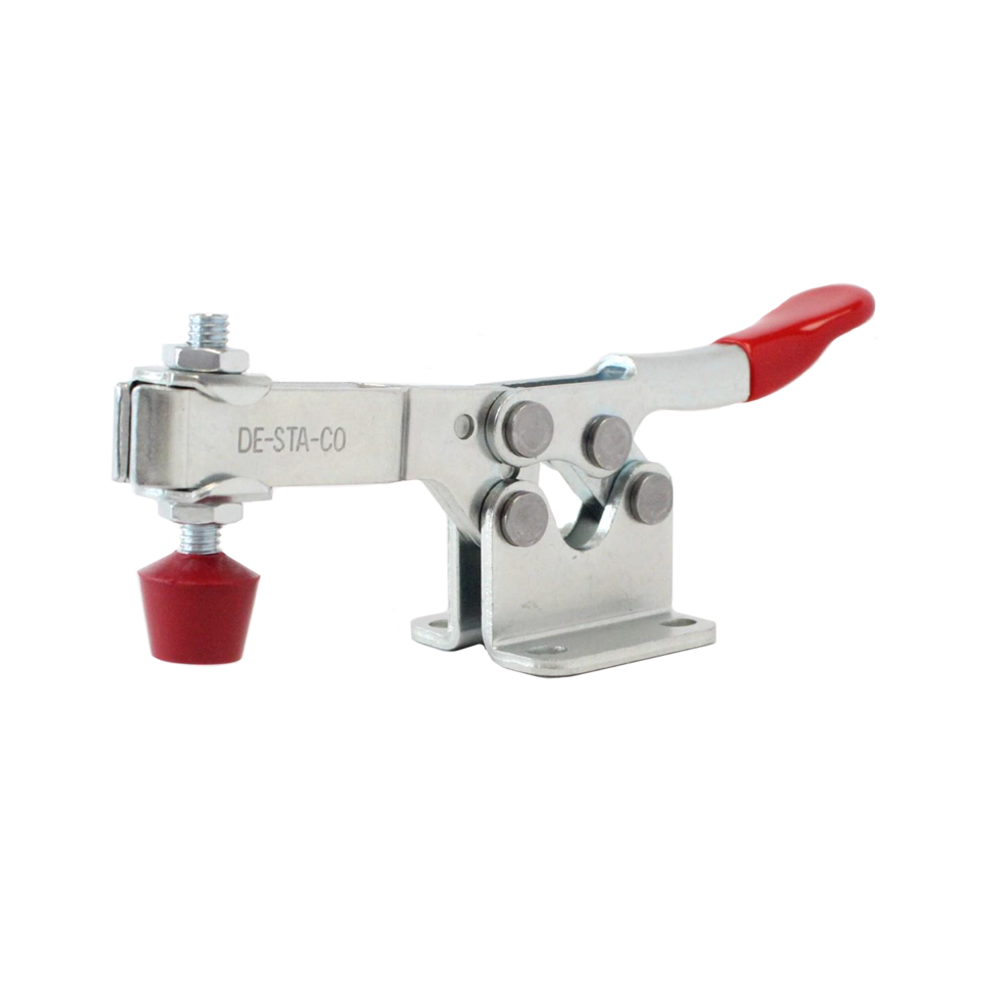

215-U Horizontal Hold-Down Toggle Locking Clamp
• Clamp supplied with neoprene spindle
• Low profile
• Model no.: 215-U
• Maxmum Holding Capacity (N): 890
• Maximum Holding Capacity (lbsf): 200
• Clamp Arm Length (mm): 57.4
• Clamp Arm Length (in): 2.260
• Height Under Clamp Arm (mm): 25.4
• Height Under Clamp Arm (in): 1.000
vClamp Bar Opening (+10°) (degrees): 87
• Handle Opening (+10°): 8
vStandard Material: Steel
• Toggle Lock Plus: No
• Accommodates Workpiece Variation: No
• Base Mounting Style: Flange
• Clamp Arm Style: U-Bar
• Handle: Horizonal
• Service Environment: Normal
• Duty Cycle: 2
• Product Type: Standard
• holding force: 900- N
• angle: 87°Â
• standard equipment: 202208-M
• Weight: 0.15 (kg) / 0.33 (lb)
Application: Welding: Fair/Medium, Assembly: Excellent/High, Checking Fixtures: Excellent/High, Machining: Poor/Low, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Fair/Medium
Specifications
Handle :
HorizonalDuty Cycle :
2Weight (lb) :
0.33Product Type :
StandardProduct Series :
215Clamp Arm Style :
U-BarFlanged Washers :
215105DistributorGroup :
Workholding (Manual, Power and Hydraulic Clamps)Product Function :
ClampingSpindle Assembly :
202208-MToggle Lock Plus :
NoStandard Material :
SteelBase Mounting Style :
FlangeService Environment :
NormalApplication - Welding :
Fair/MediumClamp Arm Length (in) :
2.26Application - Assembly :
Excellent/HighApplication - Closures :
Excellent/HighHandle Opening (+10°) :
78Application - Machining :
Poor/LowApplication - Wood-Working :
Excellent/HighHeight Under Clamp Arm (in) :
1Application - Food Processing :
Fair/MediumMaximum Holding Capacity (lbf) :
200Accomodates Workpiece Variation :
NoApplication - Checking Fixtures :
Excellent/HighClamp Bar Opening (+10°) (degrees) :
87Downloads
