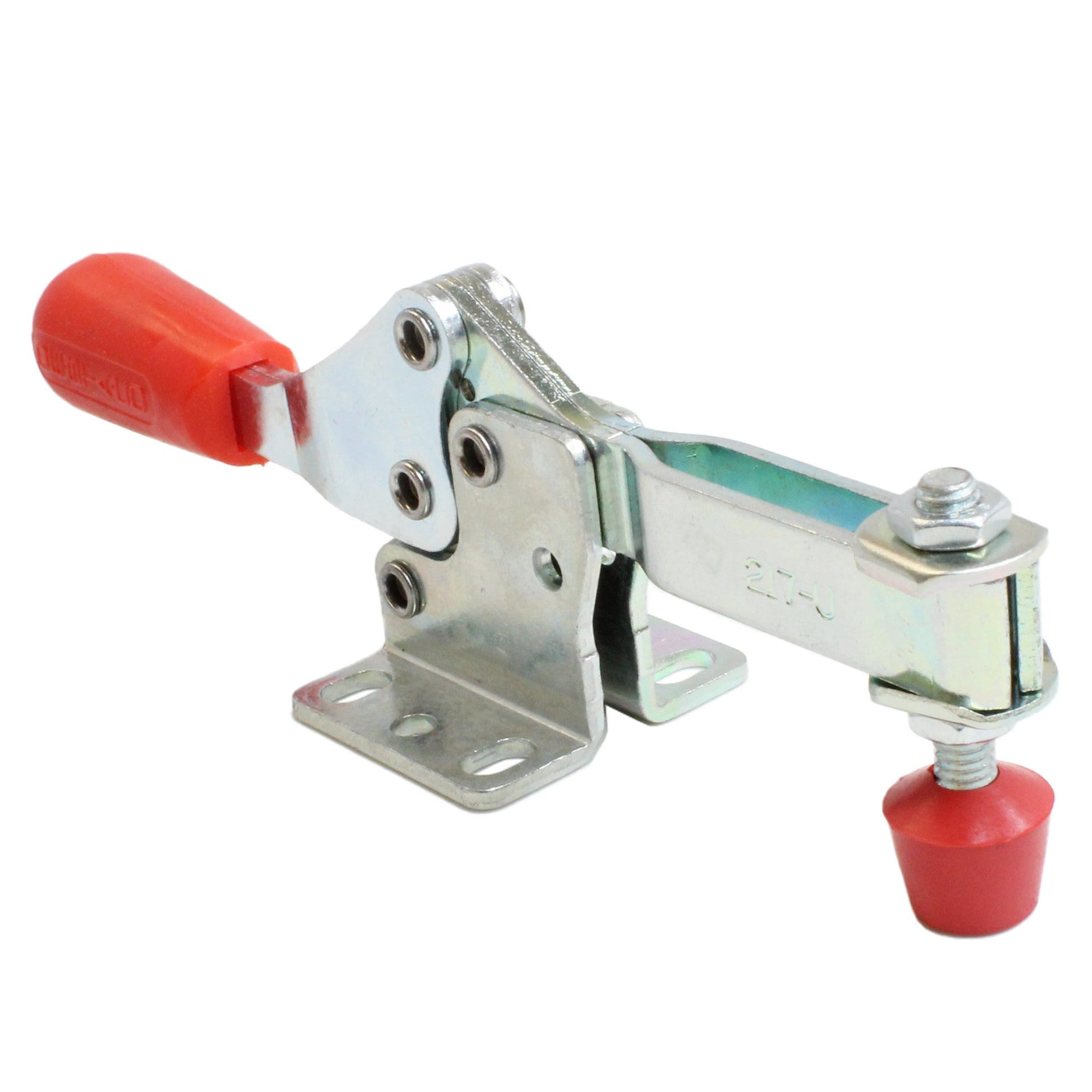

217-U Horizontal Hold-Down Toggle Locking Clamp
- Model No.: 217-U
- Maximum Holding Capacity (N): 900
- Maximum Holding Capacity (lbsf): 200
- Clamp Arm Length (mm): 58.7
- Clamp Arm Length (in): 2.310
- Height Under Clamp Arm (mm): 23.4
- Height Under Clamp Arm (in): 0.920
- Clamp Bar Opening (+10°) (degrees): 91
- Handle Opening (+10°): 61
- Standard Material: Steel
- Toggle Lock Plus: No
- Accommodates Workpiece Variation: No
- Base Mounting Style: Flange
- Clamp Arm Style: U-Bar
- Handle: Horizontal
- Service Environment: Normal
- Duty Cycle: 2
- Product Type: Standard
- Holding Force: 900: N
- Angle: 90°
- Standard Equipment: 202208-M
- Weight (kg): 0.18 (0.40 lb)
Additional Features:
- Clamp supplied with neoprene spindle
- Low profile
Application: Welding: Fair/Medium, Assembly: Excellent/High, Checking Fixtures: Excellent/High, Machining: Poor/Low, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Fair/Medium
Specifications
PublishedDate
1716208078000
DistributorGroup
Workholding (Manual, Power and Hydraulic Clamps)
Product Function
Clamping
Spindle Assembly
202208-M
Base Mounting Style
Flange
Service Environment
Normal
Application - Welding
Fair/Medium
Clamp Arm Length (in)
2.31
Application - Assembly
Excellent/High
Application - Closures
Excellent/High
Handle Opening (+10°)
61.0
Application - Machining
Poor/Low
Application - Wood-Working
Excellent/High
Height Under Clamp Arm (in)
0.92
Application - Food Processing
Fair/Medium
Maximum Holding Capacity (lbf)
200.0
Accomodates Workpiece Variation
No
Application - Checking Fixtures
Excellent/High
Clamp Bar Opening (+10°) (degrees)
91.0
