Destaco 323 | Pull Action Latch Clamp

Product Details

SKU
323
Vendor
Destaco
Inventory

In Stock: 53

$16.85 USD
$6.49 USD MSRP $16.85 USD

Description

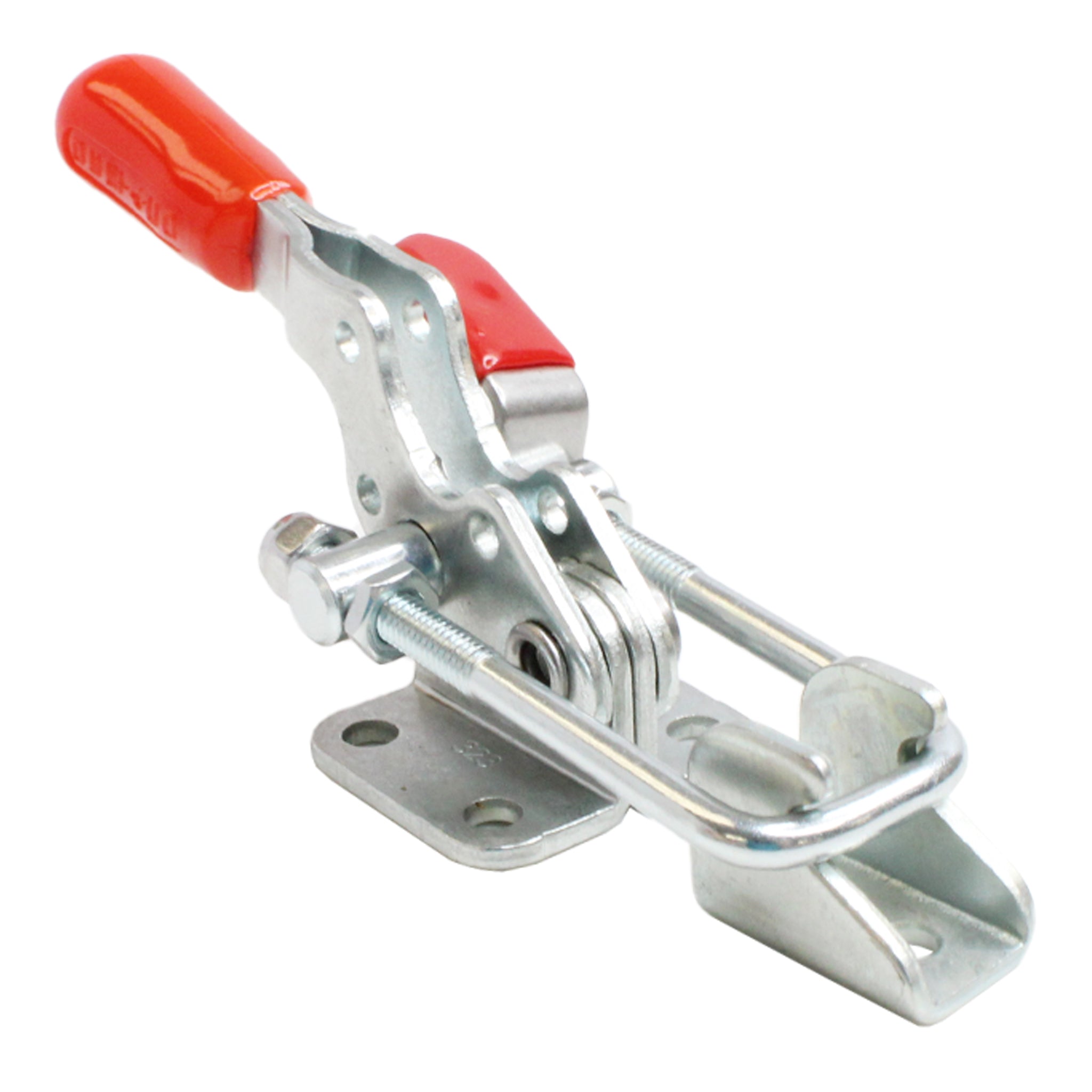

323 Pull Action Latch Clamp

 • Model No.: 323
 • Maximum Holding Capacity (N): 1,600
 • Maximum Holding Capacity (lbsf): 360
 • Drawing Movement (mm): 30.0
 • Drawing Movement (in): 1.180
 • Hook Adjustable Range (mm): 10.7
 • Max Hook Adjustment (in): 0.490
 • Standard Material: Steel
 • Toggle Lock Plus: No
 • Base Mounting Style: Flange
 • Drawing Movement (mm): 30.0
 • Hook Type: U-Hook (Horizontal)
 • Latch Plate: 323104-M
 • Latch Plate Supplied?: Yes
 • Replacement Hook Assembly: 323215
 • Product Type: Standard
 • Weight: 0.07kg (0.15lbs)

Additional Features:

 • Supplied with threaded U-hooks for easy adjustment
 • Latch plate included

Specifications

Latch Plate :

323104-M

Weight (lb) :

0.15

Product Type :

Standard

PublishedDate :

1673986255000

Product Series :

323/331/341

DistributorGroup :

Workholding (Manual, Power and Hydraulic Clamps)

Hook Type U-Hook :

(Horizontal)

Product Function :

Clamping

Toggle Lock Plus :

No

Standard Material :

Steel

Base Mounting Style :

Flange

Latch Plate Supplied :

Yes

Hook Adjustable Range :

10.7

Max Hook Adjustment (in) :

0.49

Replacement Hook Assembly :

323215

Maximum Holding Capacity (lbf) :

360.0

Drawing Movement without Thumb Control (in) :

1.18

Ef:Af Exerting Force: Applied Force ((pushing/pulling)) :

27:1
