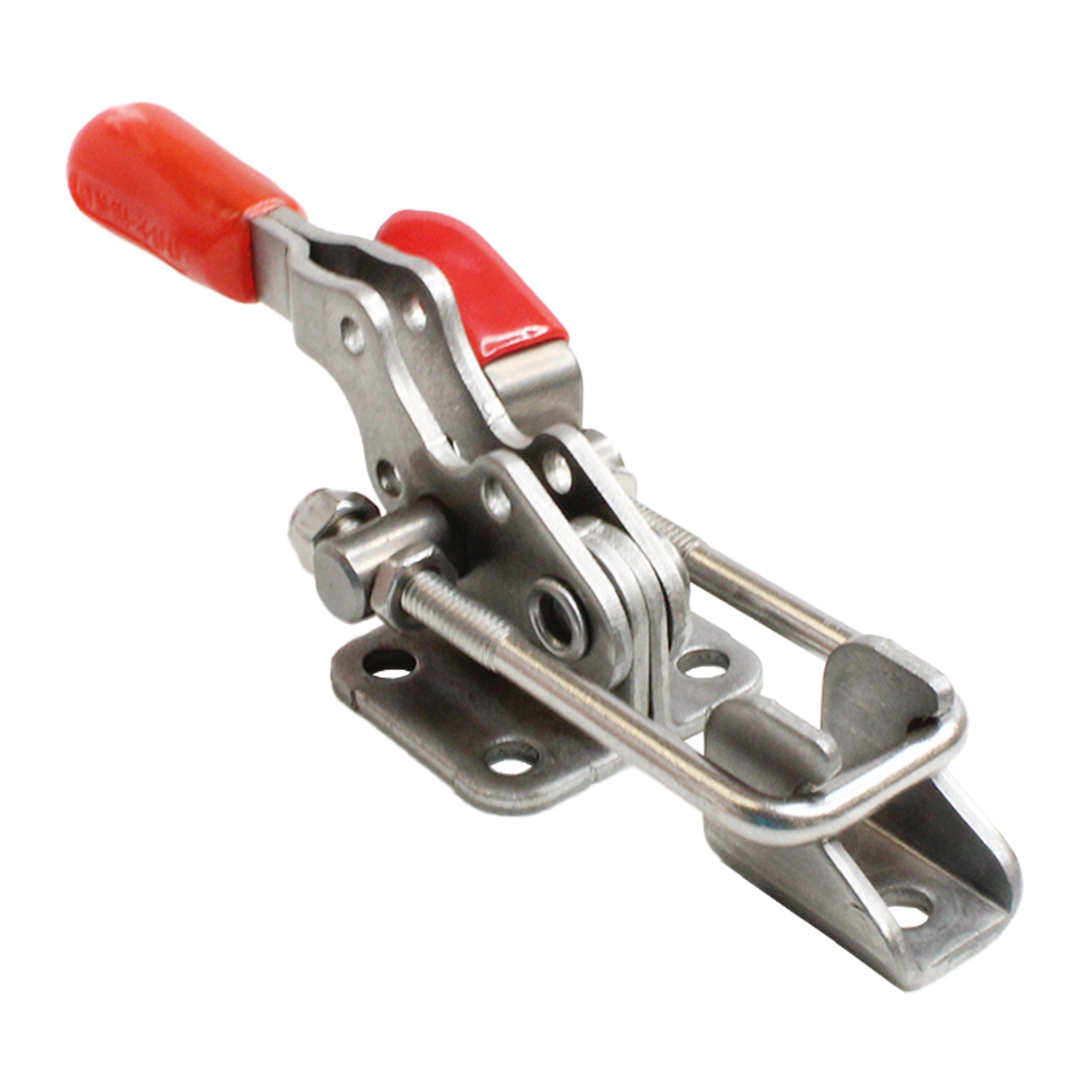

Destaco 323-SS Pull Action Latch Clamp
Product Details
In Stock: 69
Couldn't load pickup availability
Description
323-SS Pull Action Latch Clamp
 • Model No.: 323-SS
 • Maximum Holding Capacity (N): 1,600
 • Maximum Holding Capacity (lbsf): 360
 • Drawing Movement (mm): 30.0
 • Drawing Movement (in): 1.180
 • Hook Adjustable Range (mm): 10.7
 • Max Hook Adjustment (in): 0.490
 • Ef:Af Exerting Force: Applied Force ((pushing/pulling)): 27:1
 • Standard Material: Stainless Steel
 • Toggle Lock Plus: No
 • Base Mounting Style: Flange
 • Drawing Movement (mm): 30.0
 • Hook Type: U-Hook (Horizontal)
 • Latch Plate: 323104-MSS
 • Latch Plate Supplied?: Yes
 • Replacement Hook Assembly: 323915
 • Product Type: Standard
 • Weight: 0.07kg (0.15lb)
Additional Features:
 • Stainless Steel
 • Supplied with threaded U-hooks for easy adjustment
 • Latch plate included
 • Optional hook lengths available
Specifications
Hook Type :
U-Hook (Horizontal)Latch Plate :
331905Weight (lb) :
0.55Product Type :
StandardPublishedDate :
1704469466000Product Series :
323/331/341DistributorGroup :
Workholding (Manual, Power and Hydraulic Clamps)Product Function :
ClampingToggle Lock Plus :
NoStandard Material :
Stainless SteelBase Mounting Style :
FlangeLatch Plate Supplied :
YesHook Adjustable Range :
22.1Max Hook Adjustment (in) :
0.59Replacement Hook Assembly :
331915Maximum Holding Capacity (lbf) :
700.0Drawing Movement without Thumb Control (in) :
1.78Ef:Af Exerting Force: Applied Force ((pushing/pulling)) :
32:1Downloads
