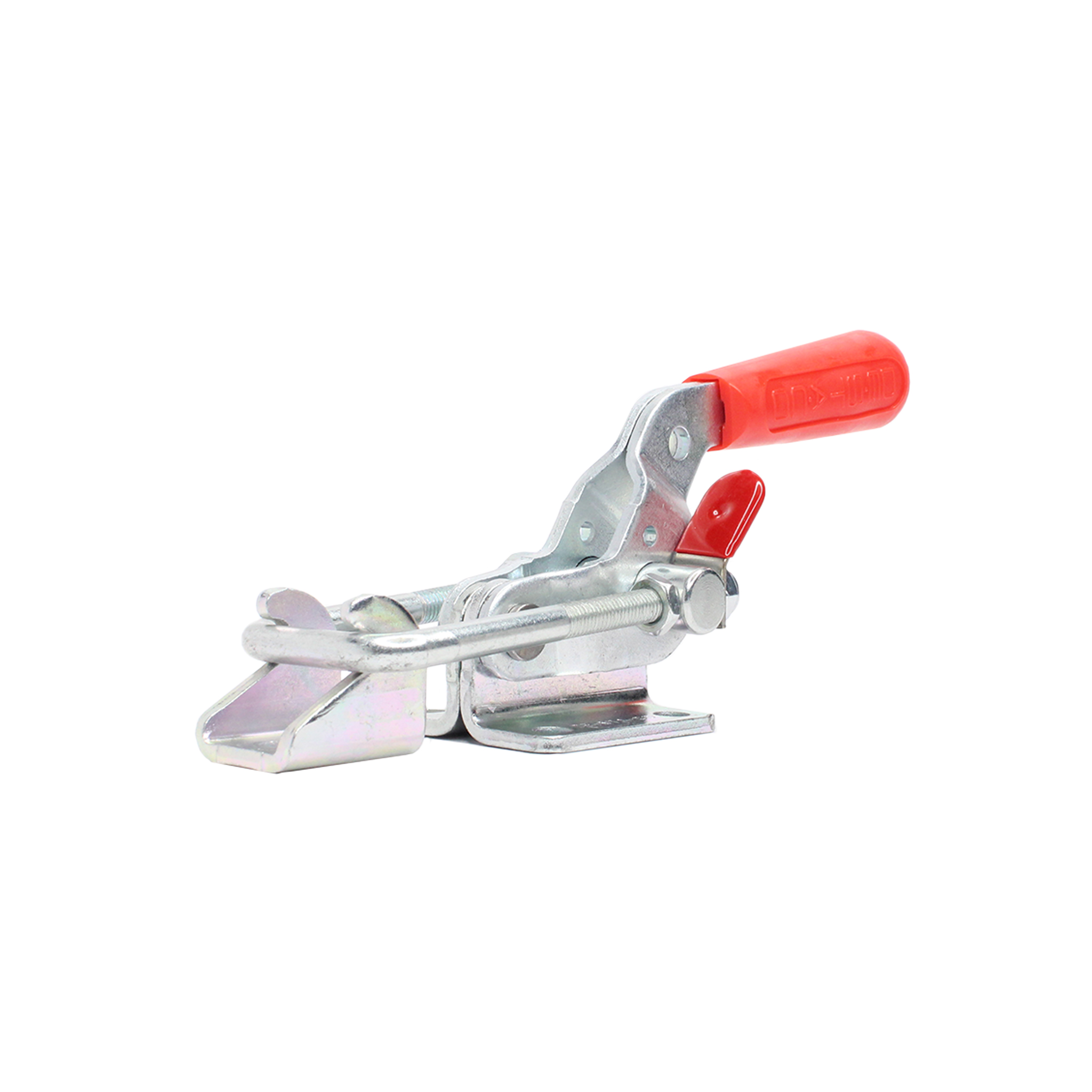

Destaco 341 | Pull Action Latch Clamp

Product Details

Horizontal U-latch toggle clamps extend their closed-end, U-shaped pull bar straight out from the base plate to pull together workpieces that are inline with one another. They mount to one workpiece and use their U-latch pull bar to grip a latch plate on a second workpiece.
SKU
341
Vendor
Destaco
Inventory

In Stock: 24

$35.98 USD
$34.58 USD MSRP $35.98 USD

Description

341 Pull Action Latch Clamp

 • Model No.: 341
 • Maximum Holding Capacity (N): 8,900
 • Maximum Holding Capacity (lbsf): 2,000
 • Drawing Movement (mm): 63.5
 • Drawing Movement (in): 3.080
 • Hook Adjustable Range (mm): 24.6
 • Max Hook Adjustment (in): 0.760
 • Ef:Af Exerting Force: Applied Force ((pushing/pulling)): 29:1
 • Standard Material: Steel
 • Toggle Lock Plus: No
 • Base Mounting Style: Flange
 • Drawing Movement (mm): 63.5
 • Hook Type: U-Hook (Horizontal)
 • Latch Plate: 341005
 • Latch Plate Supplied?: Yes
 • Replacement Hook Assembly: 341215
 • Product Type: Standard
 • Weight: 0.75kg (1.43lb)

Additional Features:
 • Patented Thumb Control Lever provides one-handed operation
 • Supplied with threaded U-hooks for easy adjustment
 • Latch plate included

Specifications

Hook Type :

U-Hook (Horizontal)

Latch Plate :

341005

Weight (lb) :

1.43

Product Type :

Standard

PublishedDate :

1673984982000

Product Series :

323/331/341

DistributorGroup :

Workholding (Manual, Power and Hydraulic Clamps)

Product Function :

Clamping

Toggle Lock Plus :

No

Standard Material :

Steel

Base Mounting Style :

Flange

Latch Plate Supplied :

Yes

Hook Adjustable Range :

24.6

Max Hook Adjustment (in) :

0.76

Replacement Hook Assembly :

341215

Maximum Holding Capacity (lbf) :

2000.0

Drawing Movement without Thumb Control (in) :

3.08

Ef:Af Exerting Force: Applied Force ((pushing/pulling)) :

29:1
