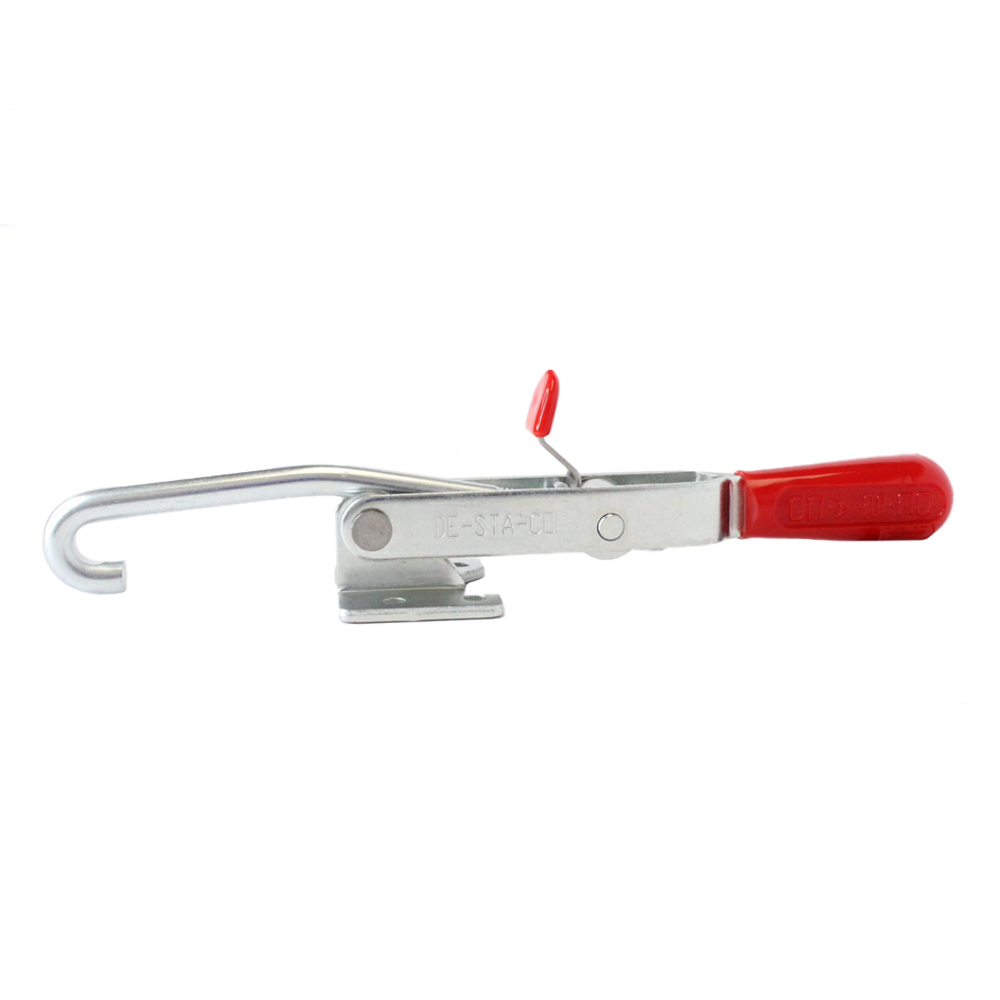

Destaco 351 | Pull Action Latch Clamp

SKU: 351

$19.15

In stock

  • Specifications
  • Documents
  • Shipping & Returns

351 Pull Action Latch Clamp

•Model No.: 351
 •Maximum Holding Capacity (N): 1,670
 •Maximum Holding Capacity (lbsf): 375
 •Drawing Movement (mm): 101.6
 •Drawing Movement (in): 4.170
 •Hook Adjustable Range (mm): 12.4
 •Max Hook Adjustment (in): 0.430
 •Ef:Af Exerting Force: Applied Force ((pushing/pulling)): 21:1
 •Standard Material: Steel
 •Toggle Lock Plus: No
 •Base Mounting Style: Flange
 •Drawing Movement (mm): 101.6
 •Hook Type: J-Hook
 •Replacement Hook Assembly: 351215
 •Product Type: Standard
 •Thread: M8x1.25
 •Overall Hook Length: 5.89INCH
 •Weight: 0.28kg (0.61lb)

Additional Features:
•Supplied with threaded J-Hook for easy adjustment
 •Patented Thumb Control Lever provides one-handed operation
 •Longer hook lengths available

Specifications

Hook Type

J-Hook

Weight (lb)

0.62

Product Type

Standard

Product Series

330/351/371/381

DistributorGroup

Workholding (Manual, Power and Hydraulic Clamps)

Product Function

Clamping

Toggle Lock Plus

No

Standard Material

Steel

Base Mounting Style

Flange

Hook Adjustable Range

12.4

Max Hook Adjustment (in)

0.43

Replacement Hook Assembly

351215

Maximum Holding Capacity (lbf)

375

Drawing Movement with Thumb Control

2.75

Drawing Movement without Thumb Control (in)

4.17

Ef:Af Exerting Force: Applied Force ((pushing/pulling))

21:1
