Destaco 8315 Block Style Pneumatic Swing Clamp
Product Details
Couldn't load pickup availability
Description

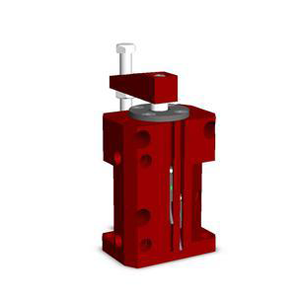

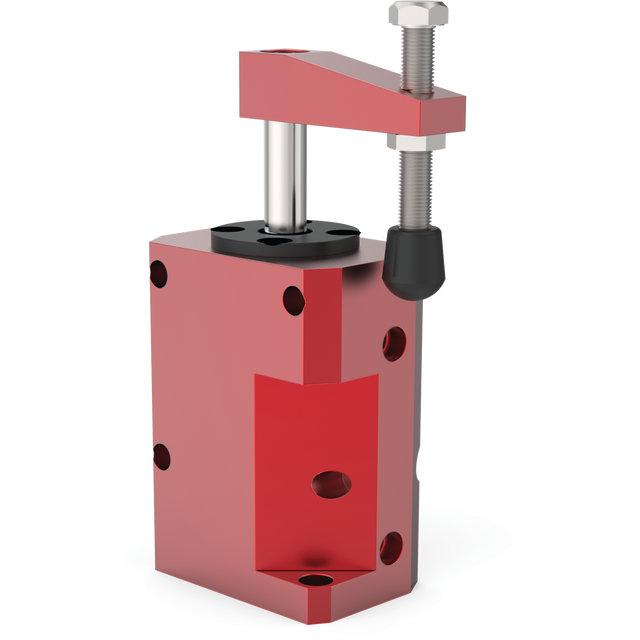

Destaco 8315 Block Style Pneumatic Swing Clamp
Sensor ready
Clamping arm and spindle included. Available with out clamping arm, specify -LA
Right hand swing
Stroke (mm): 31.8
Stroke (in): 1.250
Cylinder Bore (mm): 38.1
Cylinder Bore (in): 1.5
Clamping Force @ 5Bar[72Psi] (N): 300
Clamping Force @ 5Bar[72Psi] (lbf.): 67
Mount: Block style - side or top mount
Replacement Seal Kit: 821560
Swing Direction: RH
Air Port size: 3/8-16
Air Consumption (per double stroke at 5 bar) (dm²): 0.400
Air Consumption (per double stroke at 7 psi) (in²): 0.014
Stroke during rotation (mm): 19.1
Stroke during rotation (in): 0.75
Vertical clamp stroke (mm): 12.7
Vertical clamp stroke (in): 0.50
Sensor Ready: Yes
Series: 8300
EDP No.: 58315
Swing: RH
Arm Supplied: 821512
Spindle Supplied: 485203-AL
Travel During Rotation: 19.0mm
Travel During Rotation: 0.75INCH
Vertical Clamp Stroke: 32.5mm
Vertical Clamp Stroke: 1.28INCH
Max. Arm Length: 76.2mm
Max. Arm Length: 3.00INCH
Weight: 0.91kg [2.00lb]
Specifications
Mount :
Block style - side or top mountStroke (in) :
1.25Weight (lb) :
2.0Sensor Ready :
YesAir Port size :
1/8 NPTPublishedDate :
1658239190281Product Series :
8100/8300Swing Direction :
RHDistributorGroup :
Workholding (Manual, Power and Hydraulic Clamps)Product Function :
ClampingCylinder Bore (in) :
1.5Replacement Seal Kit :
821560Vertical clamp stroke (in) :
0.5Stroke during rotation (in) :
0.75Clamping Force @ 5Bar[72Psi] (lbf.) :
67.0Air Consumption (per double stroke at 7 psi) (in³) :
