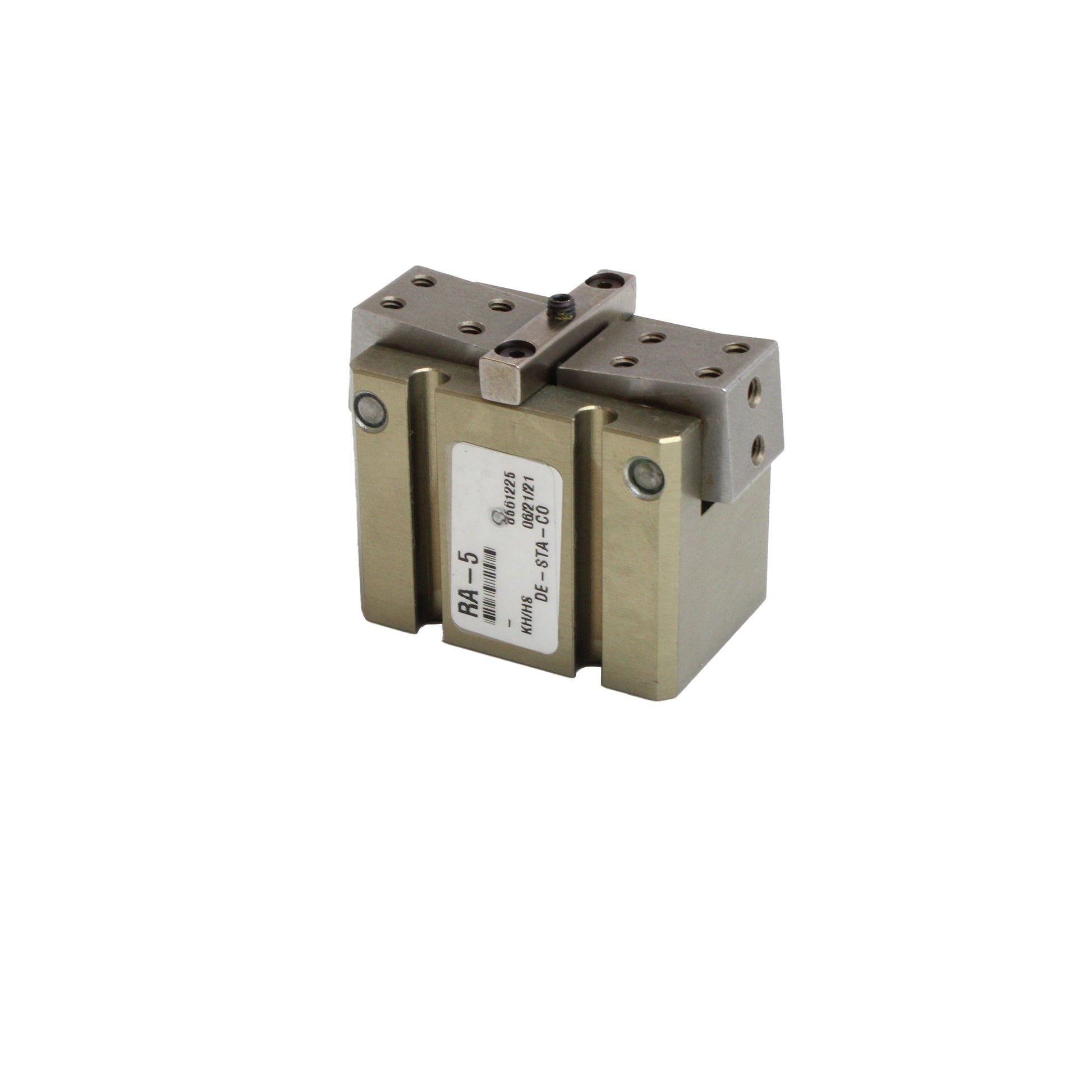

The Robohand RA-5 Cam Driven Angular Gripper is a compact, rugged pneumatic gripper built for high-precision part handling. Its cam-driven design delivers strong grip force for its size, making it ideal for tight automation setups.
This 2-jaw angular gripper opens to 180°, with each jaw rotating 90° for full clearance during part transfer. It delivers 20 lbf of grip force and supports finger lengths up to 2 inches. The RA-5 operates between 40–100 psi and maintains repeatability of ±0.003 inches, ensuring consistent performance in light-duty tasks.
Robohand built the RA-5 with a simplified drive mechanism and aluminum body for durability. It weighs just 0.25 lb and measures 1.75 inches in length, making it easy to integrate into compact systems. The unit does not include a spindle and does not use spring assist.
Mounting options include top or side jaw configurations, and it’s compatible with accessories like sensors and stops. Whether you’re automating small part handling or working in space-constrained environments, the RA-5 offers reliable, precise motion.
Quick Product Highlights
- 2-jaw angular gripper with 180° jaw motion
- 20 lbf grip force with ±0.003″ repeatability
- Compact 1.75″ body, weighs just 0.25 lb
- Pressure range: 40–100 psi
- No spindle, no spring assist
Get your Robohand RA-5 Cam Driven Angular Gripper at Kinequip today.
