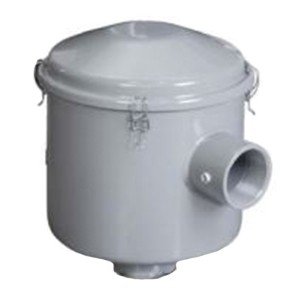

CSL Series 3/8″ – 3″ for Vacuum
Compact “L” Style Inlet Vacuum Air Filters, Up to 300 SCFM (510 m3/h)
– Standard polyester – 5 microns – 99% plus removal efficiency
– Filter change out differential: 15-20″ H2O over initial Delta P
– Low pressure design – ability to handle high vacuum applications
– Vacuum Rating: Medium vacuum service (see attached specifications sheet)
– Vacuum rating offers a gas tight o-ring seal
– Positive engagement O-ring seal system
– Continuous Temperature Minimum: 15°F (-26° C)
– Continuous Temperature Maximum: 220°F (104°C)
– Low pressure design
– Designed to handle high vacuum applications
– Large dirt holding capacity and easy field cleaning (best when mounted horizontally/inverted)
Material/Finishes/Housing:
– All stainless steel construction, with powder coat finish, epoxy coating
– Stainless steel torsion clips for durability
– Brazed fittings for high vacuum duty
– Seamless drawn housings
Options (upon request):
– Pressure drop graphs available
– Element options and vacuum gauge available
– Dome hood for high holding capacity
– Support brackets, extra tap fittings for vacuum gauge
– Specialty media and gaskets/seals for custom installations/applications
– Alternative top-to-canister fastening system for low pressure or pulsation systems
– Activated carbon
Suggested Applications:
Ash Handling – Blowers-Side Channel – Blowers-Side Channel – Cement – Compressor-Piston – Compressor-Screw – Factory Automation – Leak Detection – Soil Venting/Remediation – Vacuum Lifters – Vacuum Packaging – Woodworking
