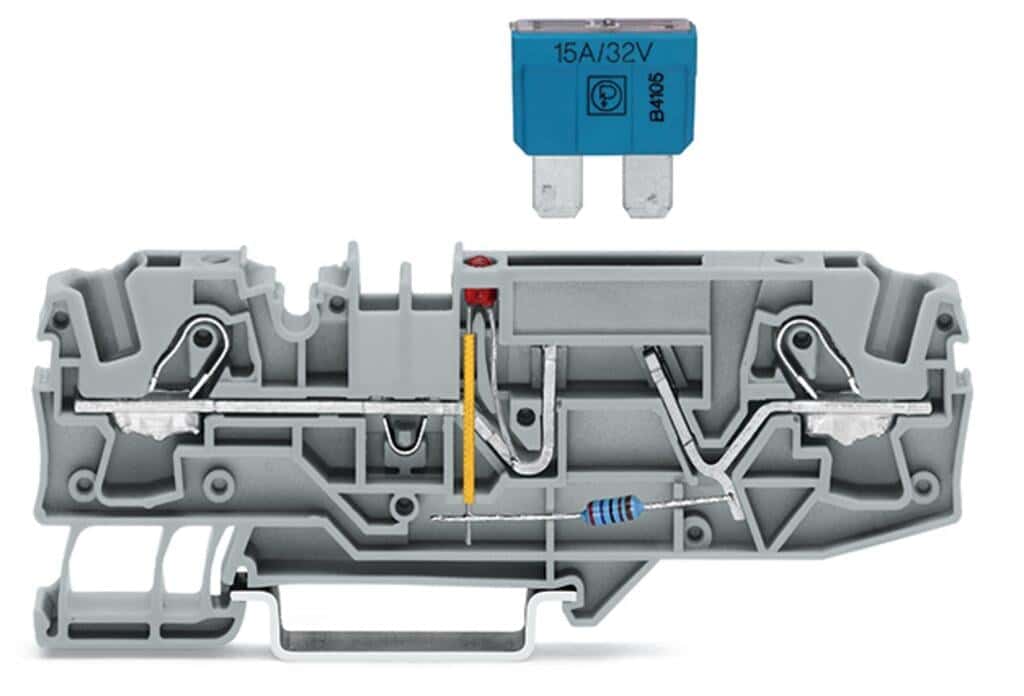

The WAGO 2006-1681 2-Conductor Fuse Terminal Block is a compact, DIN-rail mountable solution for automotive blade-style fuses. It features a test option but does not include blown fuse indication, making it ideal for basic fuse monitoring setups. This terminal block uses WAGO’s Push-in CAGE CLAMP® technology for fast, secure wiring without tools.
It supports copper conductors ranging from 20 AWG to 8 AWG (0.5 mm² to 10 mm²) and is rated for up to 30 A and 600 V (UL), with a nominal voltage of 500 V (IEC). The gray polyamide housing is flame-retardant (UL94 V-0) and built for durability in industrial environments.
With a single-level design and front-entry wiring, the 2006-1681 simplifies installation and saves space in control panels. Its 7.5 mm width and 32.9 mm height make it ideal for compact enclosures. The terminal includes two jumper slots and supports center or side marking for easy identification.
Quick Product Highlights
- 2-conductor fuse terminal block for blade-style fuses
- Push-in CAGE CLAMP® connection system
- Supports 20–8 AWG (0.5–10 mm²) copper conductors
- Rated 30 A / 600 V (UL), 500 V (IEC)
- DIN-rail mountable; 7.5 mm wide
- Flame-retardant gray housing (UL94 V-0)
