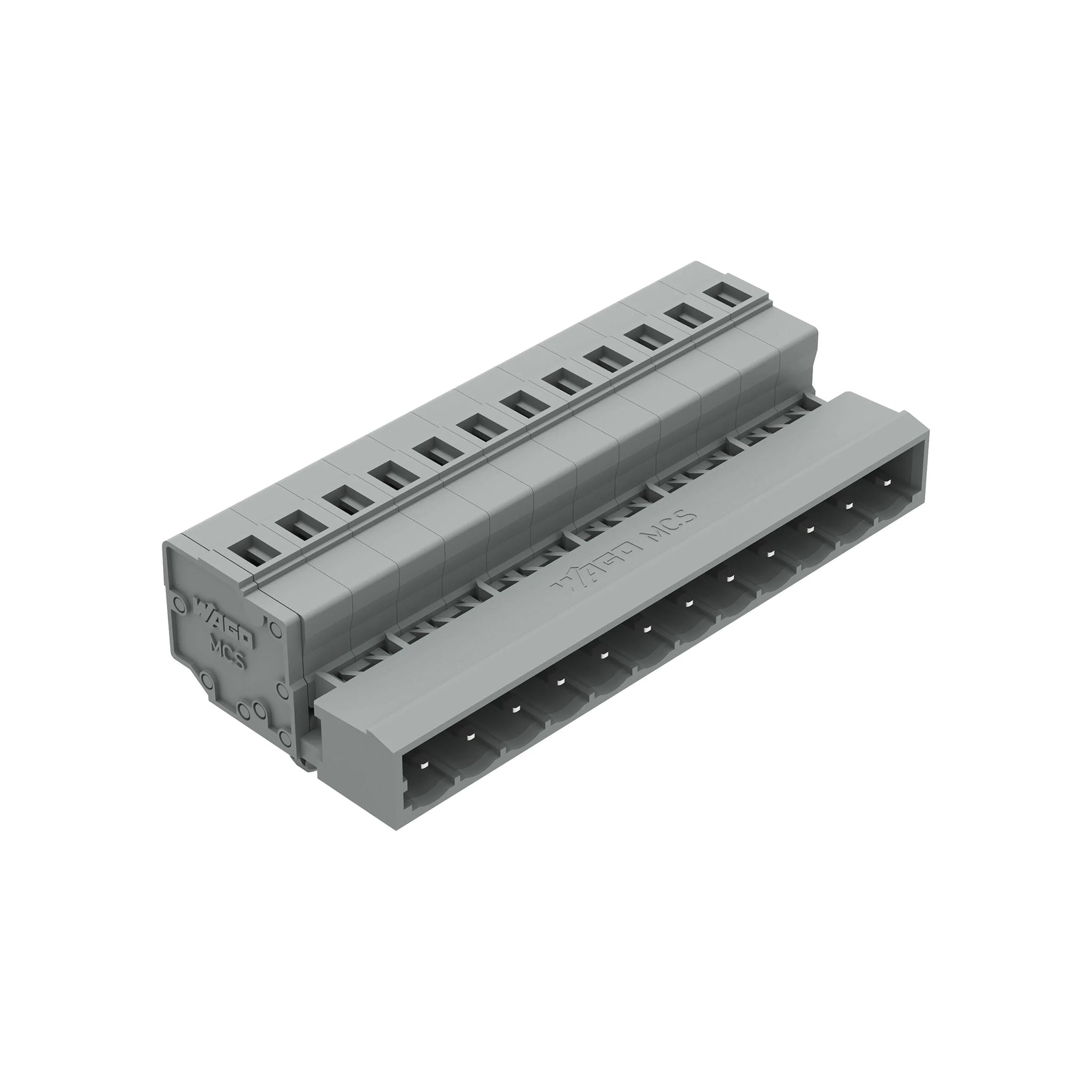

The WAGO 231-612/018-000 Male Connector is a 12-pole plug designed for fast, secure connections in industrial automation systems. It features WAGO’s CAGE CLAMP® technology, allowing tool-free wiring of solid and ferruled conductors up to 2.5 mm². The connector has a 5 mm pin spacing and supports DIN-35 rail or panel mounting with snap-in feet for easy installation.
This male plug is part of the MCS MIDI Classic series and is built for free-hanging, in-line use. It supports wire gauges from 12 to 28 AWG and operates at up to 630 V (IEC) and 600 V (UL), with current ratings of 12 A (IEC) and 15 A (UL). The plug wire entry is positioned at 180°, and the termination style uses a screwless spring cage clamp.
Its gray housing is made from flame-retardant polyamide (PA66) and meets UL94 V-0 standards. The connector includes anti-rotation protection and board lock features for added stability. It measures 63.2 mm wide, 18.8 mm high, and 27.5 mm deep, making it compact and reliable for tight spaces.
Quick Product Highlights
- 12-pole male connector with CAGE CLAMP®
- 5 mm pin spacing, 2.5 mm² wire capacity
- DIN-35 rail or panel mounting
- Screwless spring cage termination
- Rated up to 630 V / 15 A
- Flame-retardant PA66 housing, UL94 V-0
- Anti-rotation and board lock features
