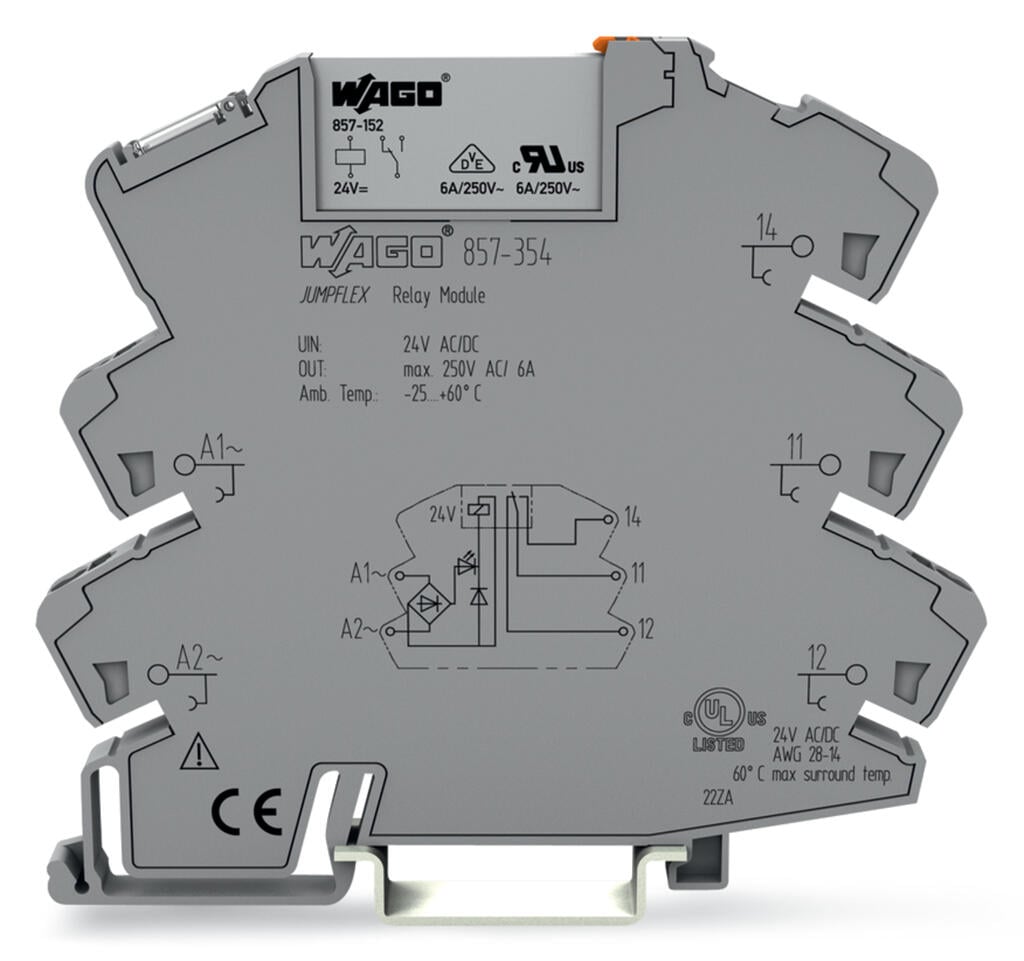

The WAGO 857-354 Relay Module 24V is a slim, DIN-rail mount interface designed for versatile AC/DC control applications. It features a universal 24 V AC/DC coil input and one SPDT (changeover) contact rated for 6 A continuous current.
This module includes a yellow status indicator for visual feedback and uses spring terminal connections for quick, tool-free wiring. It operates within a temperature range of -40°C to 60°C and supports switching voltages up to 250 VAC with a maximum load of 1500 VA.
The contact material is silver tin oxide (AgSnO), and the coil draws 8.5 mA with a resistance of 2.8 kΩ. The module is RoHS3 compliant and REACH affected, making it suitable for regulation-compliant installations. Its compact 6 mm width allows for space-saving integration into control panels.
Get your WAGO 857-354 Relay Module 24V at Kinequip today.
