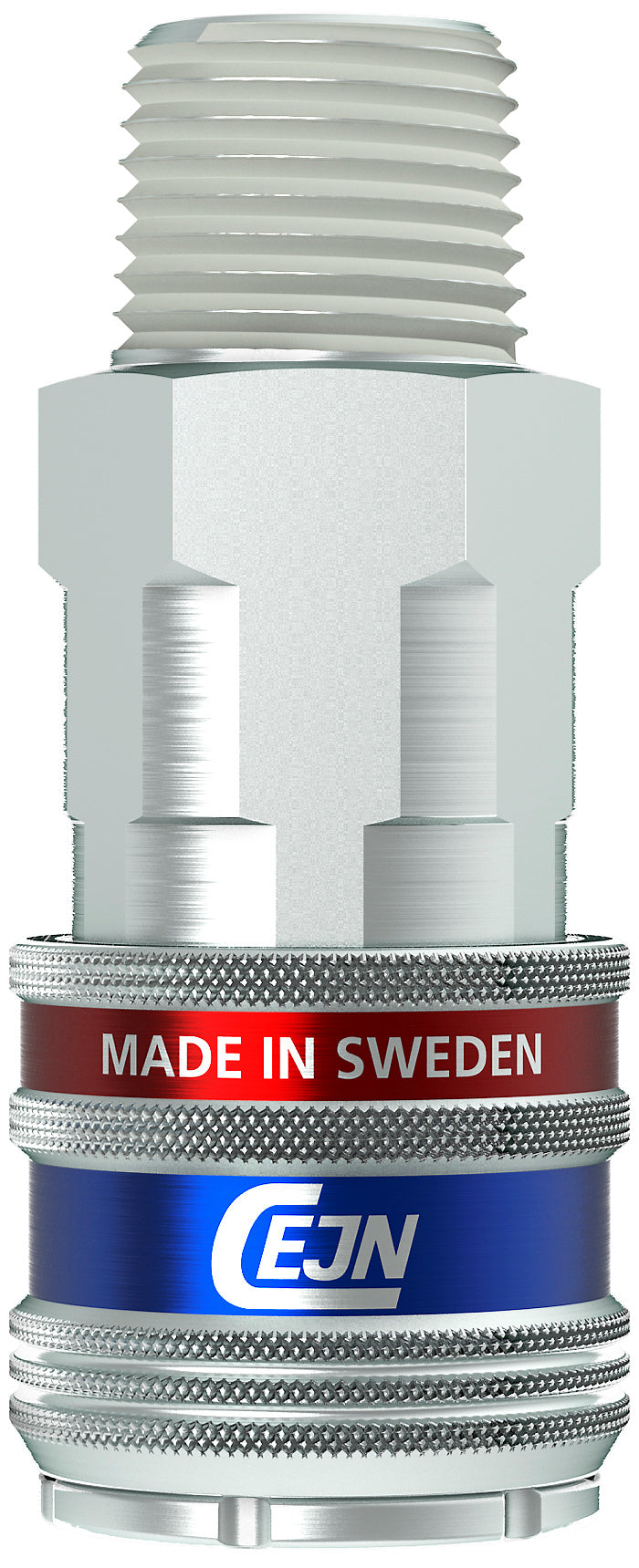

Cejn 10-310-1454 Series 310 DN 5.3 eSafe Male Thread Coupling NPT 3/8″, 16 Bar
Series 310 offers a wide range of easy-to-grip couplings, including Soft-Line, Stream-Line, and Multi-Link couplings. Male threads on the couplings and nipples feature pre-applied thread sealant. The Series eSafe 310 version is disconnected in two stages in order to vent the coupling and minimize the risk of sudden component separation, which has the potential to cause operator injury. The one-handed operation ensures easy handling. The eSafe version complies with ISO Standard 4414 and EN 983.
Nominal flow diameter
7/32” (5.3 mm)
Air flow @ 100 PSI
32.6 CFM 925 l/min)
Max. working pressure
232 PSI 16 bar)
Min. burst pressure
2030 PSI (140 bar)
Temperature range
-4°F – +212°F (-20°C – +100°C)
Material coupling
Zinc-plated steel/brass
Material nipple
Hardened zinc-plated steel
Connection force
70.7 N
Markets
Benelux, France, North America, Norway
Standards
ISO 6150 B, A-A 59439 5.3 mm
Connection
NPT 3/8″
Description Class
Male thread
