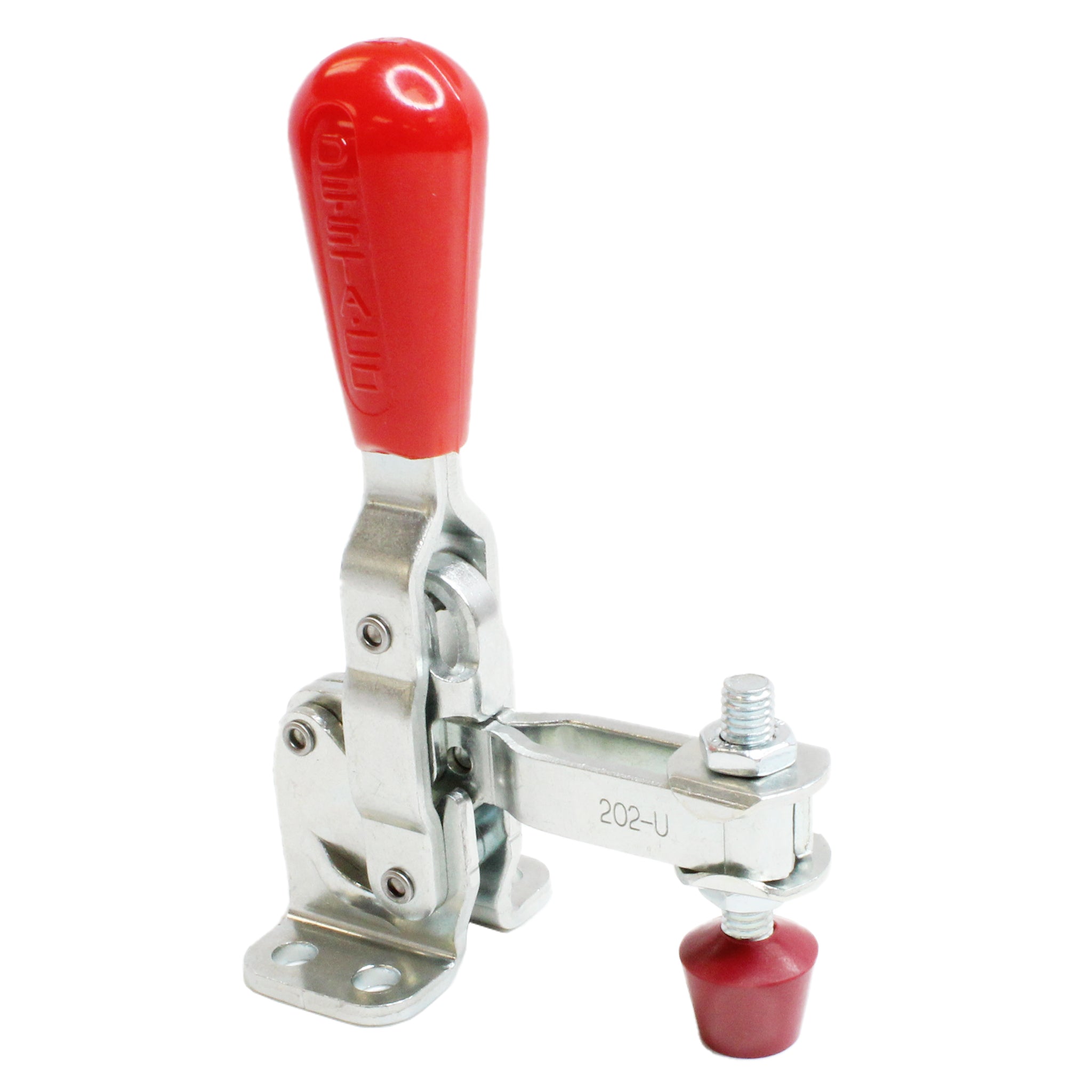

202-U Vertical Hold-Down Toggle Locking Clamp
Supplied with neoprene spindle
Ergonomic handle grip included
Maximum Holding Capacity (N): 890
Maximum Holding Capacity (lbsf): 200
Clamp Arm Length (mm): 43.9
Clamp Arm Length (in): 1.730
Height Under Clamp Arm (mm): 23.4
Height Under Clamp Arm (in): 0.920
Clamp Bar Opening (+10°) (degrees): 105
Handle Opening (+10°): 65
Standard Material: Steel
Toggle Lock Plus: No
Accomodates Workpiece Variation: No
Base Mounting Style: Flange
Clamp Arm Style: U-Bar
Handle: Vertical
Service Environment: Normal
Duty Cycle : 1
Product Type: Standard
Angle: 105°
Weight: 0.16kg [0.35lbs]
Standard equipment: 202208-M
Application: Welding Poor/Low, Assembly Excellent/High, Checking Fixtures Excellent/High, Machining Not Recommended, Wood-Working Excellent/High, Closures Excellent/High, Food Processing Fair/Medium
