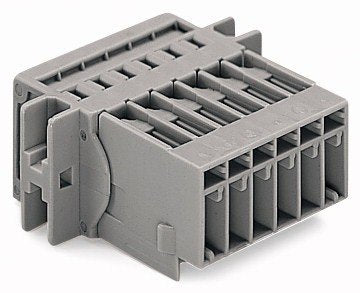

The WAGO 769-606/002-000 Male Connector is a 6-position terminal block plug designed for free-hanging, in-line applications. Part of the X-COM® series, it features a 5.00 mm pitch and supports wire sizes from 12 to 28 AWG (0.08–4 mm²).
The connector uses WAGO’s CAGE CLAMP® spring pressure termination for fast, secure, and tool-free wiring. Its gray housing is made from flame-retardant polyamide (PA66), rated UL94 V-0 for safety in industrial environments.
This male connector is rated for 32 A and 500 V (IEC), making it suitable for high-current applications in control panels, automation systems, and machinery. The 180° wire entry design simplifies installation in tight spaces, while the mounting flange ensures secure placement. It includes a clamping collar for added strain relief and wire stability.
The WAGO 769-606/002-000 is RoHS3 compliant and built for long-term reliability. With a wire strip length of 8–9 mm and an insulation height of 18.29 mm, it offers compact performance without compromising safety or durability. Whether you’re designing new systems or upgrading existing ones, this connector provides dependable interconnect solutions.
Quick Product Highlights
- 6-position male connector with 5.00 mm pitch
- CAGE CLAMP® spring termination for 12–28 AWG wires
- Rated 32 A / 500 V (IEC)
- Free-hanging, in-line mounting with flange
- Flame-retardant PA66 housing, UL94 V-0
Get your WAGO 769-606/002-000 Male Connector at Kinequip today.
