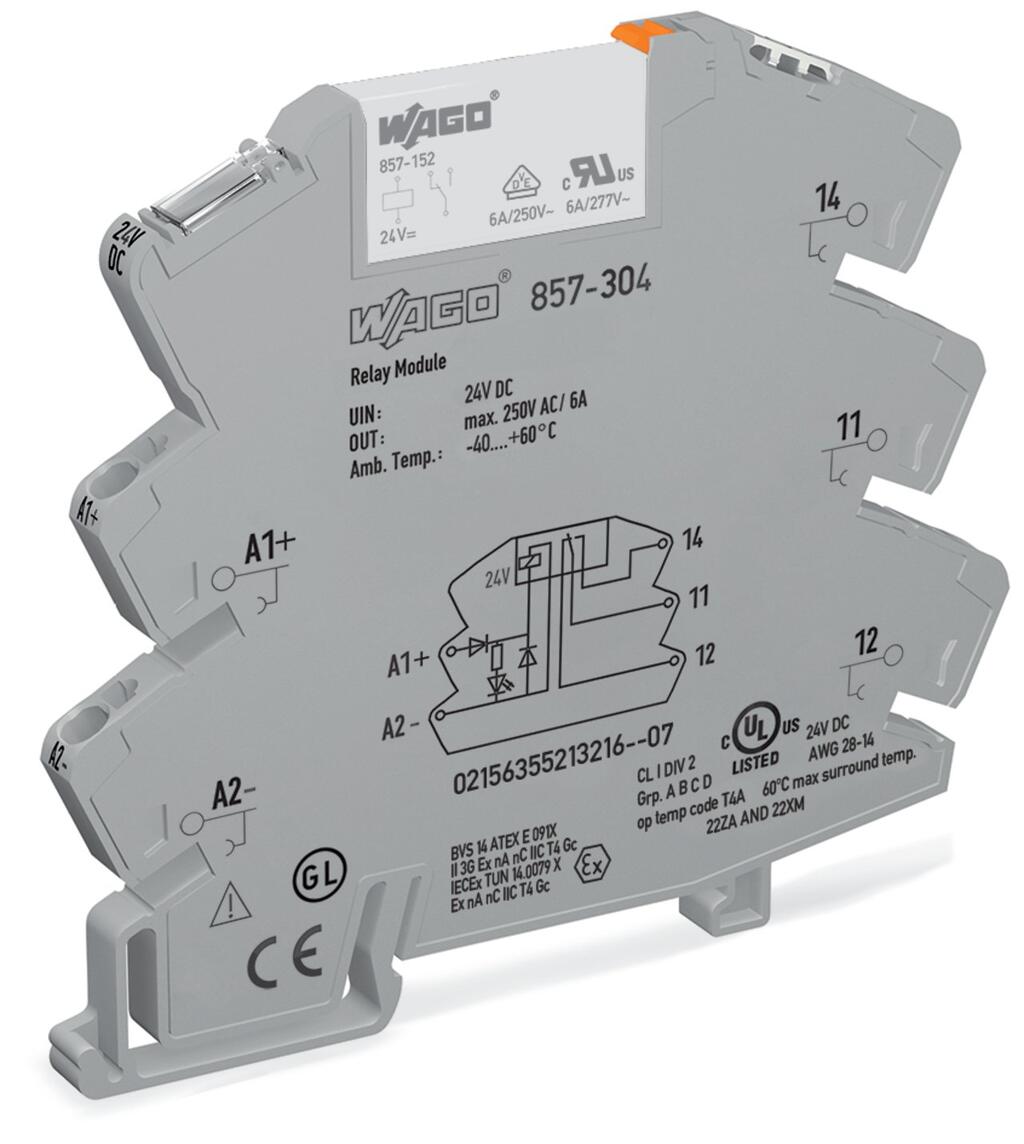

The WAGO 857-304 Relay Module switches signals quickly and safely in control systems. It uses a single-pole, double-throw (SPDT) contact rated for up to 6 amps. You get reliable switching for loads up to 250 VAC or 1500 VA.
This module runs on a 24 VDC coil and mounts easily on a DIN rail. It includes a yellow status indicator, so you can see when the relay is active. The spring terminal design makes wiring fast and tool-free. You can install it in tight spaces thanks to its slim 6 mm housing.
The relay operates between -40°C and 60°C, making it a strong choice for harsh environments. It responds quickly, with an 8 ms operate and release time. The coil draws only 10 mA and has a resistance of 2.4 kOhms. You can count on it for efficient performance in automation and control panels.
WAGO built this module with silver tin oxide contacts for long life. It meets UL and EAC approvals and follows RoHS3 standards. It also includes a socket for easy replacement.
Quick Product Highlights
- SPDT relay rated for 6 A
- 24 VDC coil with 10 mA draw
- DIN rail mount with spring terminals
- Yellow status indicator; 6 mm wide
- RoHS3 compliant and UL approved
Get your WAGO 857-304 Relay Module at Kinequip today.
