| Category |
Couplings |
| Description Class |
Female thread |
| Connection |
NPT 1/4" |

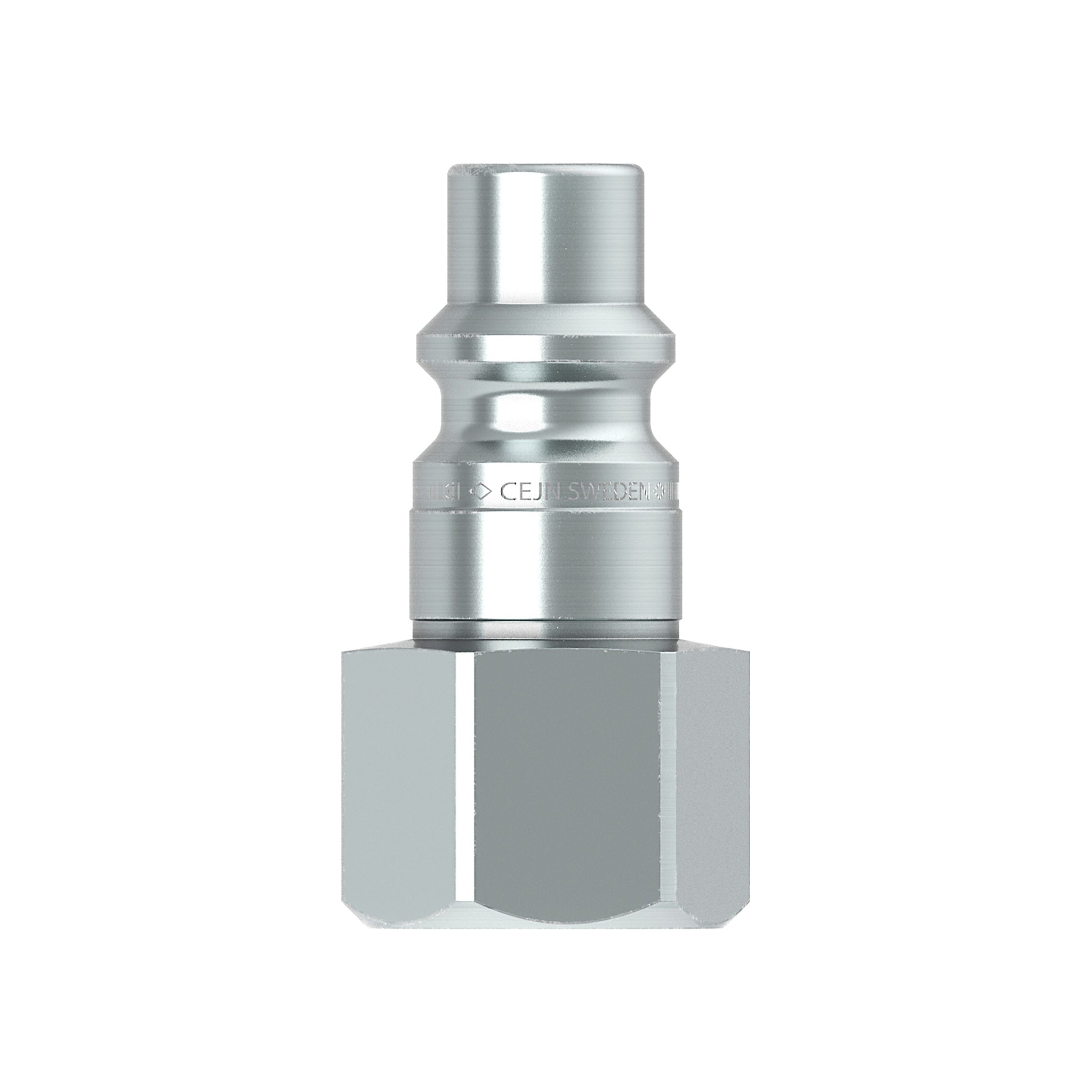

Series 342 couplings withstand extremely rough handling in extra tough applications. The Series features a zinc-plated steel construction with a locking sleeve made of hardened zinc-plated steel. The Series offers a wide range of connections, as well as anti-hose whip nipples. The automatic safety-locking feature prevents unintentional disconnection.Please refer to the CEJN Breathing Air range for an all brass version (Series 341).
| Nominal flow diameter |
7.4 mm (0.3") |
| Air flow |
1950 l/min (68.8 CFM) |
| Max. working pressure |
35 bar (507 PSI) |
| Min. burst pressure |
140 bar (2030 PSI) |
| Connection force |
103 N |
| Temperature range |
-30°C — +100°C (-22°F — +212°F) |
| Material coupling |
Zinc-plated steel/brass |
| Material nipple |
Hardened zinc-plated steel |
| Standards |
CEJN Original, 7.4 mm, Safetylock |
| Markets |
Global |
