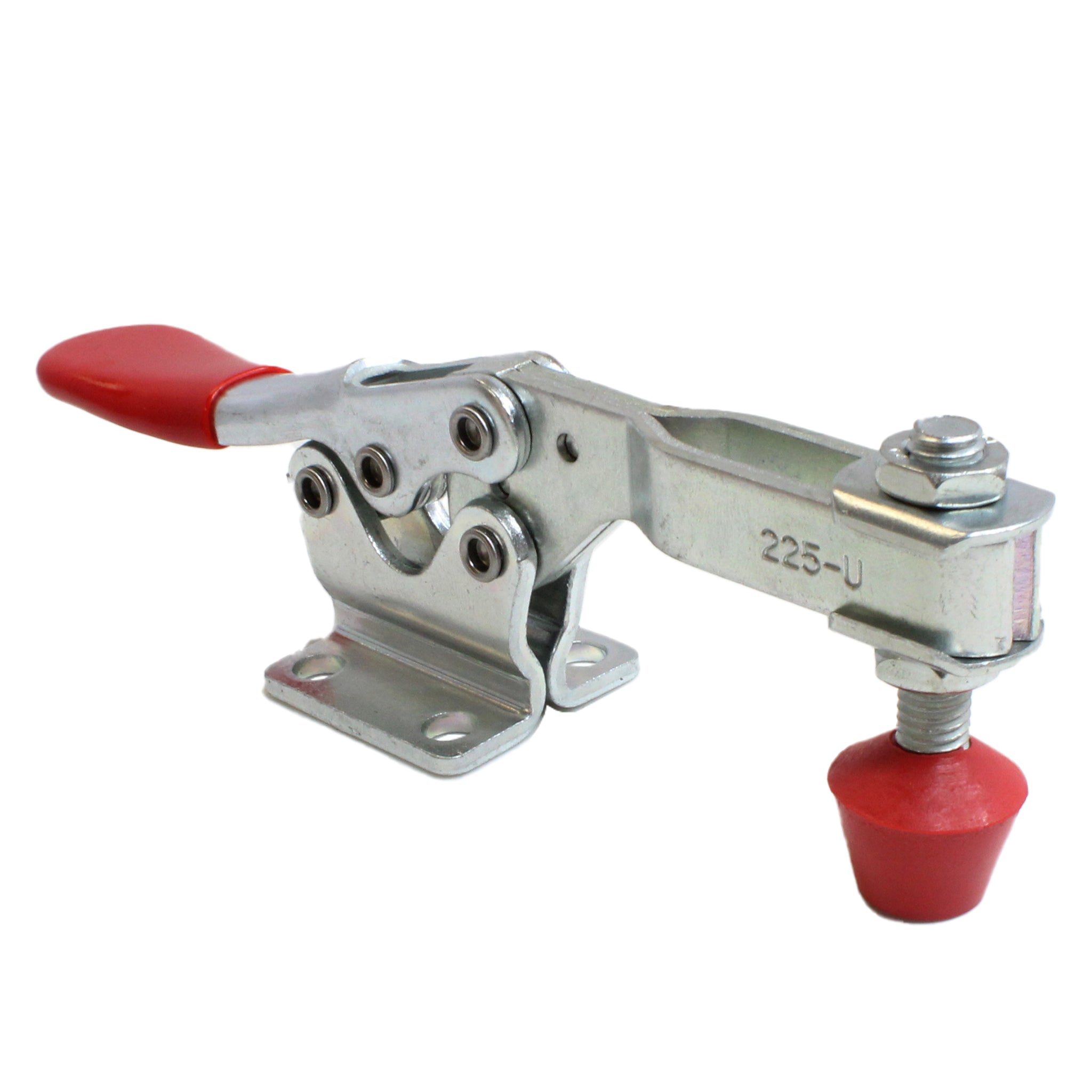

Destaco 225-U | Horizontal Hold-Down Toggle Locking Clamp
Product Details
In Stock: 168
Couldn't load pickup availability
Description
225-U Vertical Hold-Down Toggle Locking Clamp
Model no.: 225-U
Maxmum Holding Capacity (N): 2,220
Maximum Holding Capacity (lbsf): 500
Clamp Arm Length (mm): 68.3
Clamp Arm Length (in): 2.690
Height Under Clamp Arm (mm): 33.3
Height Under Clamp Arm (in): 1.310
Clamp Bar Opening (+10°) (degrees): 92
Handle Opening (+10°): 70
Standard Material: Steel
Toggle Lock Plus: No
Accomodates Workpiece Variation: No
Base Mounting Style: Flange
Clamp Arm Style: U-Bar
Handle: Horizonal
Service Environment: Normal
Duty Cycle: 2
Product Type: Standard
Holding Force: 2200 :N
Angle: 90°
Standard Equipment: 225208-M
Weight (kg): 0.25 (0.55 lb)
Additional Features:
Clamp supplied with neoprene spindle
Low profile
Application: Welding: Fair/Medium, Assembly: Excellent/High, Checking Fixtures: Excellent/High, Machining: Poor/Low, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Fair/Medium
Specifications
Handle :
HorizonalDuty Cycle :
2Weight (lb) :
0.55Product Type :
StandardProduct Series :
225Clamp Arm Style :
U-BarFlanged Washers :
507107DistributorGroup :
Workholding (Manual, Power and Hydraulic Clamps)Product Function :
ClampingSpindle Assembly :
225208-MToggle Lock Plus :
NoStandard Material :
SteelService Environment :
NormalBase Mounting Style :
FlangeApplication - Welding :
Fair/MediumClamp Arm Length (in) :
2.69Application - Assembly :
Excellent/HighApplication - Closures :
Excellent/HighHandle Opening (+10°) :
70Application - Machining :
Poor/LowApplication - Wood-Working :
Excellent/HighHeight Under Clamp Arm (in) :
1.31Application - Food Processing :
Fair/MediumMaximum Holding Capacity (lbf) :
500Accomodates Workpiece Variation :
NoApplication - Checking Fixtures :
Excellent/HighClamp Bar Opening (+10°) (degrees) :
