Destaco 237-U | Horizontal Hold-Down Toggle Locking Clamp

  • Destaco 237-U | Horizontal Hold-Down Toggle Locking Clamp

Product Details

SKU
237-U
Vendor
Destaco
Inventory

In Stock: 50

Regular price $41.00 USD
Sale price Regular price $38.65 USD MSRP Unit price $41.00 USD

Description

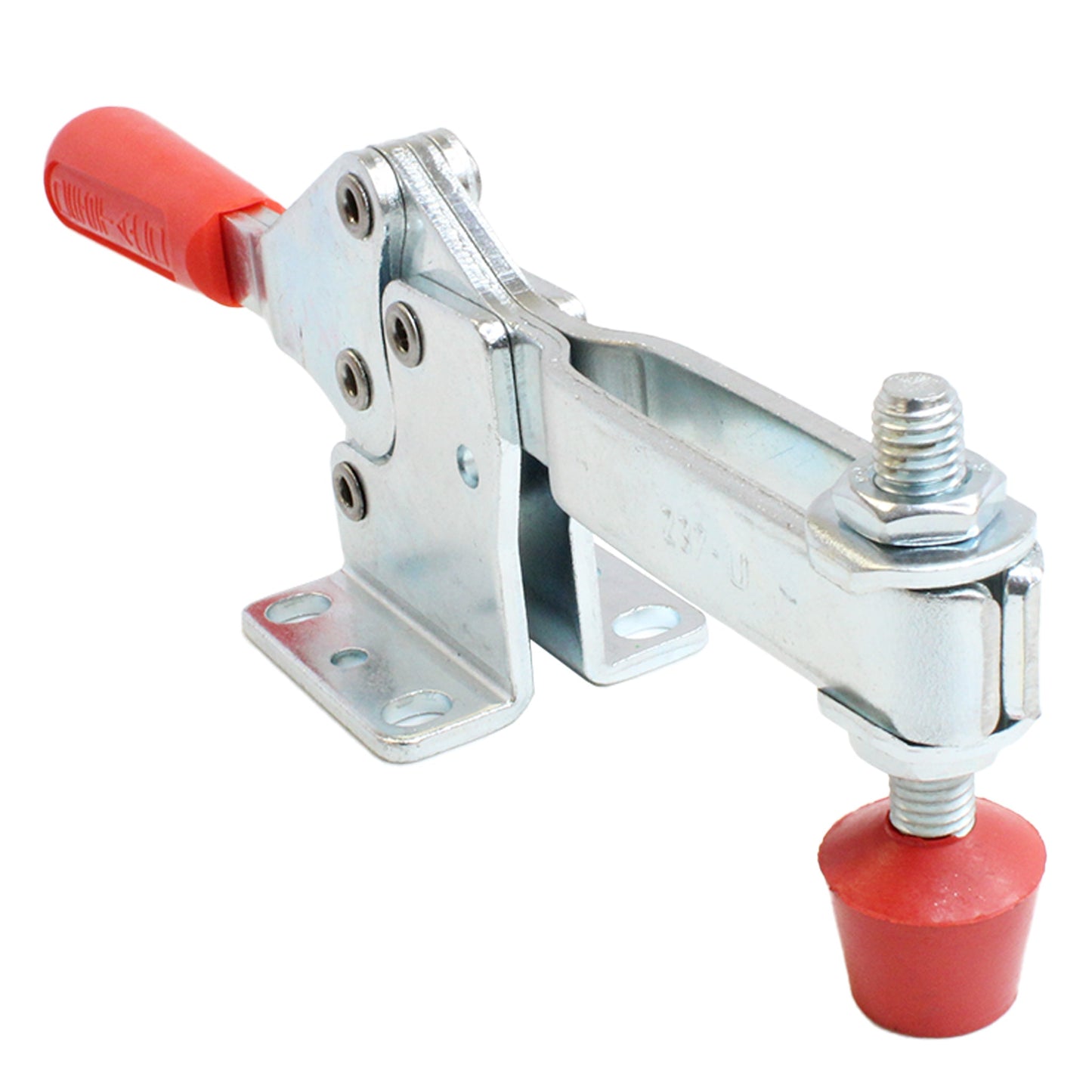

237-U Horizontal Hold-Down Toggle Locking Clamp

Model no.: 237-U
Maximum Holding Capacity (N): 3,340
Maximum Holding Capacity (lbsf): 750
Clamp Arm Length (mm): 101.5
Clamp Arm Length (in): 4.000
Height Under Clamp Arm (mm): 42.3
Height Under Clamp Arm (in): 1.670
Clamp Bar Opening (+10°) (degrees): 93
Handle Opening (+10°): 59
Standard Material: Steel
Toggle Lock Plus: No
Accomodates Workpiece Variation: No
Base Mounting Style: Flange
Clamp Arm Style: U-Bar
Handle: Horizonal
Service Environment: Normal
Duty Cycle: 2
Product Type: Standard
Holding Force: 3400: N
Angle: 90°
Standard Equipment: 240208-M
Weight (kg): 0.73 (1.61 lb)

Additional Features:
Large handle clearance in open position
Clamp supplied with neoprene spindle
Low profile

Application: Welding: Fair/Medium, Assembly: Excellent/High, Checking Fixtures: Excellent/High, Machining: Poor/Low, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Fair/Medium

Specifications

Handle :

Horizonal

Duty Cycle :

2

Weight (lb) :

1.61

Handle Color :

Red

Product Type :

Standard

Product Series :

237

Clamp Arm Style :

U-Bar

Flanged Washers :

235106

DistributorGroup :

Workholding (Manual, Power and Hydraulic Clamps)

Product Function :

Clamping

Spindle Assembly :

240208-M

Toggle Lock Plus :

No

Standard Material :

Steel

Base Mounting Style :

Flange

Service Environment :

Normal

Application - Welding :

Fair/Medium

Clamp Arm Length (in) :

4.0

Application - Assembly :

Excellent/High

Application - Closures :

Excellent/High

Application - Machining :

Poor/Low

Handle Opening (+10°) :

59.0

Application - Wood-Working :

Excellent/High

Height Under Clamp Arm (in) :

1.67

Application - Food Processing :

Fair/Medium

Maximum Holding Capacity (lbf) :

750.0

Accomodates Workpiece Variation :

No

Application - Checking Fixtures :

Excellent/High

Clamp Bar Opening (+10°) (degrees) :

93.0
