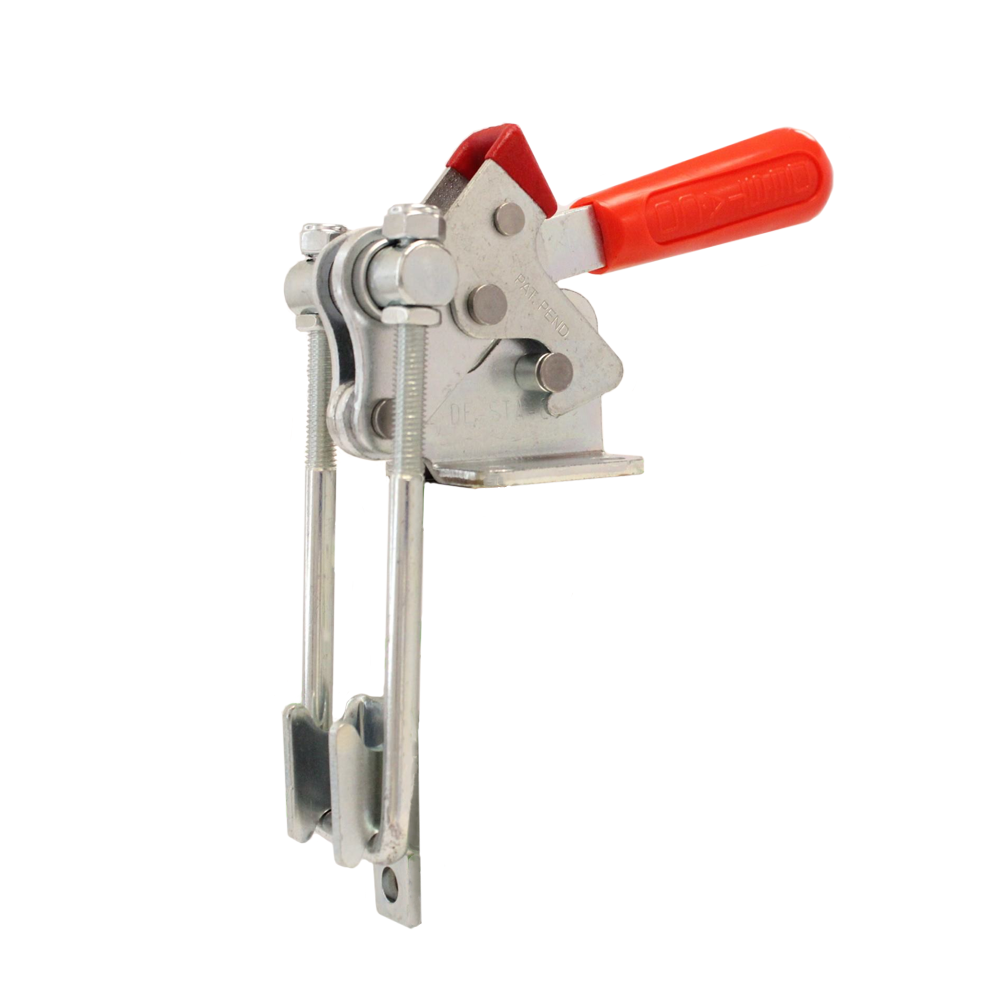

Destaco 344-R Vertical Pull-Action Latch Clamp with Toggle Lock

  • Destaco 344-R Vertical Pull-Action Latch Clamp with Toggle Lock

Product Details

SKU
344-R
Vendor
Destaco
Inventory

In Stock: 5

$89.04 USD
$83.53 USD MSRP $89.04 USD

Description

344-R Vertical Pull-Action Latch Clamp with Toggle Lock

• Model No;: 344-R
• Maximum Holding Capacity (N): 8,900
• Maximum Holding Capacity (lbsf): 2,000
• Drawing Movement (mm): 62.4
• Drawing Movement (in): 2.480
• Hook Adjustable Range (mm): 31.0
• Max Hook Adjustment (in): 1.260
• Ef:Af Exerting Force: Applied Force ((pushing/pulling)): 45:1
• Standard Material: Steel
• Toggle Lock Plus: Yes
• Base Mounting Style: Flange
• Drawing Movement (mm): 62.4
• Hook Type: U-Hook (Vertical)
• Replacement Hook Assembly: 344215
• Product Type: Standard
• Drawing Movement: 2.50"
• Thread: M8x1.25
• Overall Hook Length: 147.6mm
• Overall Hook Length: 5.81"
• Weight: 0.68kg (1.50lb)

Additional Features:
• Included threaded U-hooks allows for easy adjustment
• One-handed operation patented thumb control lever
• Additional hook lengths available upon requested
• Latch Plate: 344101 Latch plate included
• Optional hook lengths: available

Specifications

Hook Type :

U-Hook (Vertical)

Latch Plate :

344101

Weight (lb) :

1.5

Product Type :

Standard

Product Series :

324/334/344/374

DistributorGroup :

Workholding (Manual, Power and Hydraulic Clamps)

Product Function :

Clamping

Toggle Lock Plus :

Yes

Standard Material :

Steel

Base Mounting Style :

Flange

Latch Plate Supplied :

Yes

Hook Adjustable Range :

31

Max Hook Adjustment (in) :

1.17

Replacement Hook Assembly :

344215

Maximum Holding Capacity (lbf) :

2000

Drawing Movement without Thumb Control (in) :

2.46

Ef:Af Exerting Force: Applied Force ((pushing/pulling)) :

45:1
