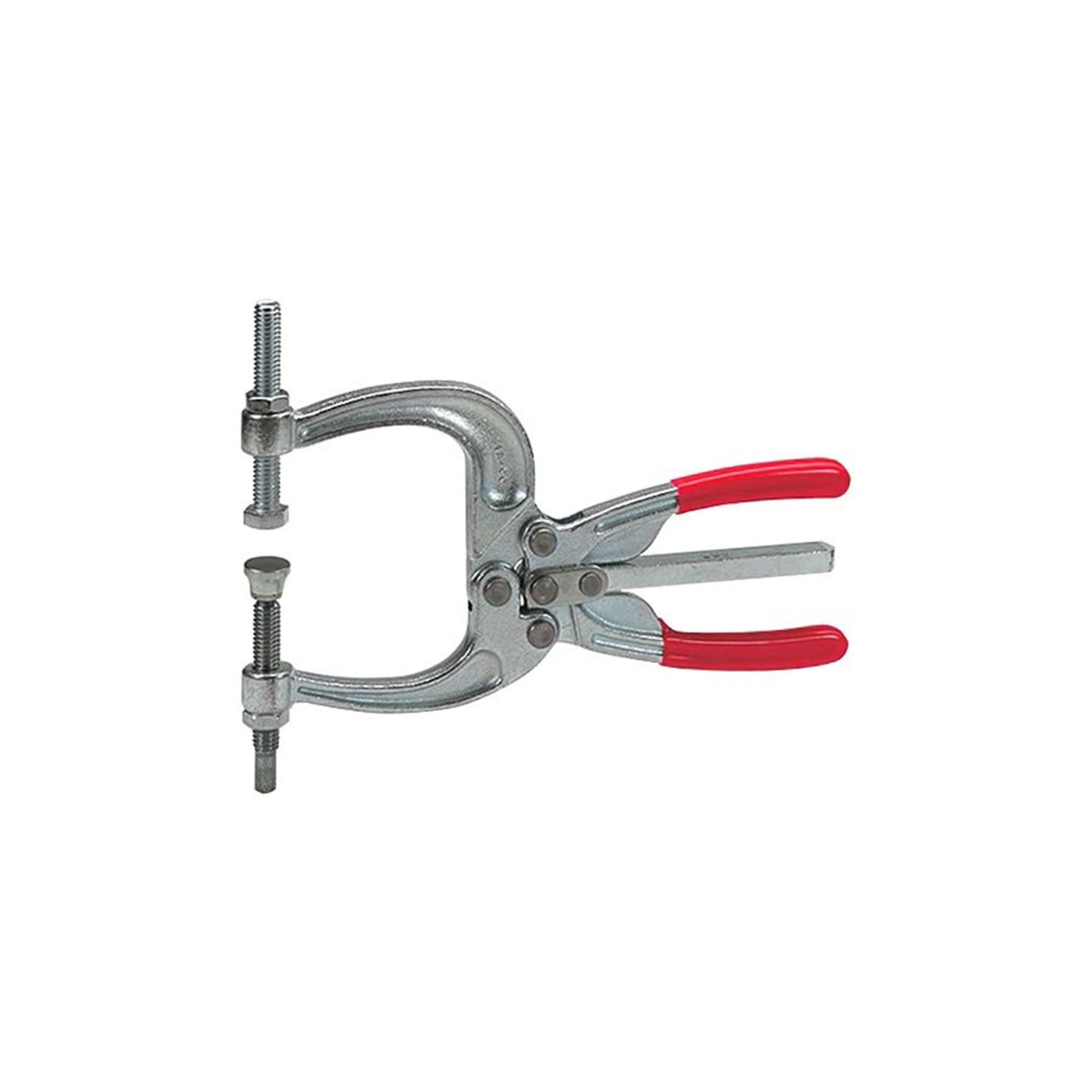

Destaco 463 | Squeeze Action Manual Clamp

The Destaco 463 Squeeze Action Manual Clamp is a powerful and reliable manual clamp with a maximum holding capacity of 3110 N (700 lbf) makes the 463 a robust and durable tool. The two adjustable spindles, M10 thread, latch plate, and two-way trigger release make this clamp effortless to use. With two-way trigger release, it's simple to adjust the jaw opening. The jaw width and depth of 3"" (75 mm) and 2.72” (68 mm) respectively allow users to quickly and securely grip a wide range of materials. Constructed with steel and a weight of 1.19 lb (0.54 kg) this clamp is built to last.

Product Details:
Maximum Holding Capacity (N): 3110
Standard Material: Steel
Product Function: Clamping
Product Type: Plier Clamp
Jaw Depth (in): 2.72
Distributor Group - EN: Workholding (Manual, Power and Hydraulic Clamps)
Keywords: 463 Plier Clamp
Product Series: 460/480
SKU: 463
BaseItem: 463
Available: Yes
Number Of Adjustable Spindles: 2
Jaw Width (in): 3
Maximum Holding Capacity (lbf): 700
Maximum Clamping Thickness (mm): 54.2
Weight (kg): 0.54
Weight (lb): 1.19
Spindle Part Number: 468206-M/210203-M
Distributor Group: Workholding (Manual, Power and Hydraulic Clamps)
Jaw Width (mm): 75
Latch Plate Supplied?: Yes
Spindle Thread: M10
Product Family: Manual Clamping
Features: Two-way trigger release
Jaw Depth (mm): 68
