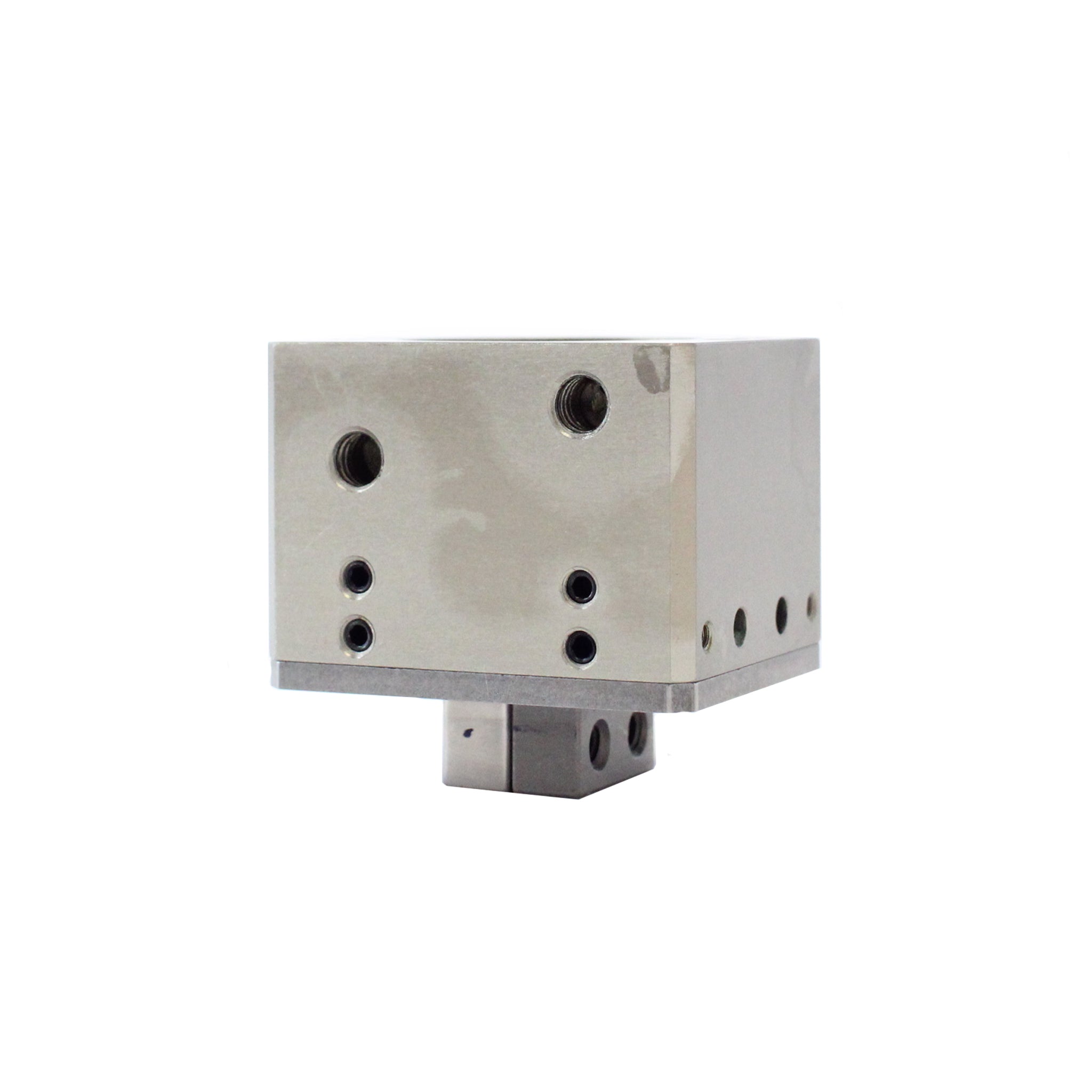

This style miniature 2 jaw parallel gripper is the most widely used in the industry and supplies a high gripforce to weight ratio. Powered by our patented double wedge design this gripper offers a rugged yet compact design. Ideal for use on small robots.

Most widely used in the industry
Lightweight, Compact for small part handling
High grip force to size ratio

 | Imperial or Metric Product  | Imperial
 | Grip Force (N)  | 178
 | Grip Force (lbsf)  | 40
 | Stroke (mm)  | 6.4
 | Stroke (in)  | 0.250
 | Cylinder Bore (mm)  | 25.4
 | Cylinder Bore (in)  | 1
 | Pressure Range (psi)  | 40-100 psi
 | Temp Range Standard  | -35° to 80°C (-30° to 180°F)
 | Temp Range Viton  | -30° to 150°C (-20° to 300°F)
 | Actuation (Open/Closed) (Sec)  | 0
 | Accuracy (±in)  | 0.001
 | Repeatability (±mm)  | 0.015
 | Repeatability (±in)  | 0.001
 | Maximum Finger Length (mm)  | 76
 | Maximum Finger Length (in)  | 3.00
 | Product Type  | 2 Jaw Parallel
 | Special Feature  | High Impact Force
 | Jaw Operation  | Synchronous
 | Spring Assist  | Optional
 | Weight (kg)  | 0.13
 | Weight (lb)  | 0.28
 | Product Series Description  | 2-Jaw Parallel Gripper
 | Number of Jaws  | 2
 | Product Function  | Gripping
 | Product Family  | Grippers
 | Product Group  | Parallel Grippers
 | Brand  | Robohand
 | Distributor Group  | Robohand Gripping Solutions
