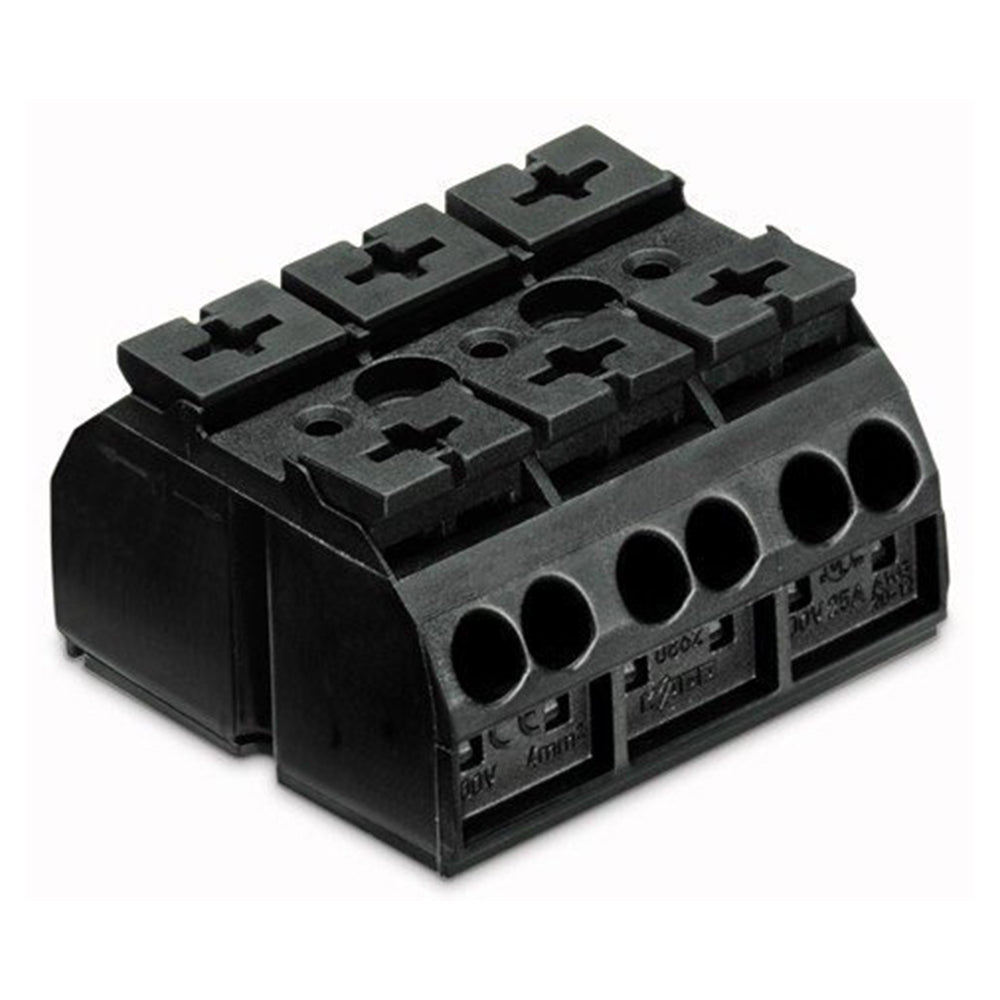

Wago 862-503 / RoHS Compliant

• Rated voltage (III / 3) [V] 00 V
• Rated impulse voltage (III / 3) [kV] 6 kV
• Rated current [A] 32 A
• Connection technology Push-in CAGE CLAMP®
• Number of connection points connector 4
• Actuation type Operating tool
• Connectable conductor materials Copper
• Solid conductor 0.5 ... 4 mm² / 20 ... 12 AWG
• Solid conductor, push-in termination 0.5 ... 4 mm² / 20 ... 12 AWG
• Stranded conductor 0.5 ... 4 mm² / 20 ... 12 AWG
• Fine-stranded conductor 0.5 ... 4 mm² / 20 ... 12 AWG
• Fine-stranded conductor with ferrule with plastic collar 0.5 ... 4 mm² / 20 ... 12 AWG
• Fine-stranded conductor with ferrule, push-in termination, m 0.5 mm² / 20 AWG
• Strip length 10 ... 11 mm / 0.39 ... 0.43"
• Type of wiring Side-entry wiring
• Fire load [MJ] 0.383 MJ
• Weight [g] 20.488 g
• Width 36 mm / 1.417"
• Height from the surface 22.3 mm / 0.878"
• Depth 35 mm / 1.378"
• Mounting type Screw mounting
• Marking without marking
